Remove/Install 360° Front Camera - AR54.30-P-3001GQ

MODEL 166, 292 with CODE 501 (360° camera)

MODIFICATION NOTES

21.8.15

"Perform initial startup of front 360° camera using the diagnostic system" added.

Operation step 7

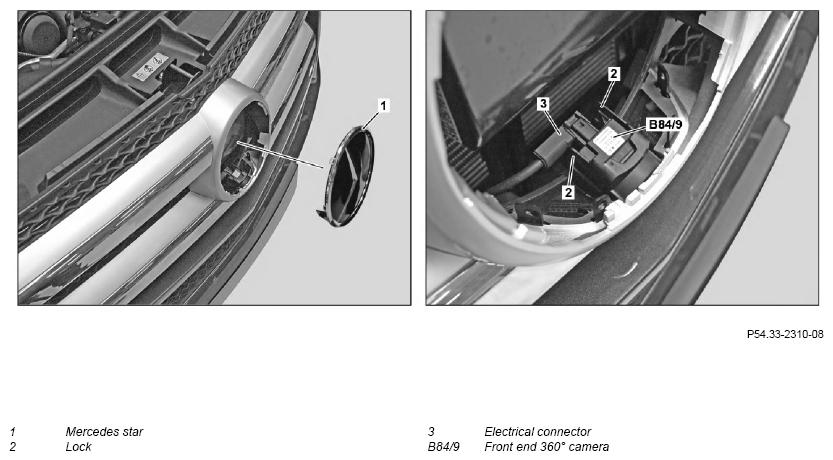

Shown on model 166.873

G11969501

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Switch off ignition and remove transmitter key
2.1	Remove radiator grille	Model 166.0 with code 501 (360° camera)	AR88.40-P-4001GQ
2.2	Remove Mercedes star (1)	Model 166.8, 292 with code 501 (360° camera)
		Model 166.8 with code 501 (360° camera)	AR88.40-P-4050NKB
		Model 292 with code 501 (360° camera)	AR88.40-P-4050GQC
3.1	Disengage locks (2)	Model 166 with code 501 (360° camera) Handle the front 360° camera (B84/9) carefully. The lens will otherwise be damaged.
3.2	Unclip bracket of front 360° camera (B84/9) and push out	Model 292 with code 501 (360° camera) Handle the front 360° camera (B84/9) carefully. The lens will otherwise be damaged.
4	Remove front 360° camera (B84/9) from radiator trim toward rear	Handle the front 360° camera (B84/9) carefully. The lens will otherwise be damaged.
5	Disconnect electrical connector (3)
6	Install in the reverse order
7	Commission front 360° camera (B84/9) using the diagnostic system	If the front 360° camera (B84/9) was replaced.	AD00.00-P-2000-04A
8	Calibrate front 360° camera (B84/9) using the diagnostic system		AD00.00-P-2000-04A
