Remove/Install Mercedes Star - AR88.40-P-4050NKB

MODEL 117, 156, 166, 176, 231, 242, 246

MODIFICATION NOTES

31.03.2017

Repair method modified.

Operation step 5-8.

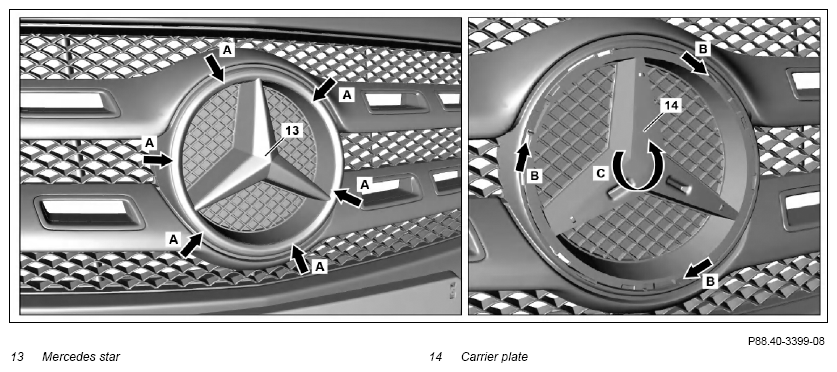

Shown on model 156 except for code 239 (DISTRONIC PLUS)

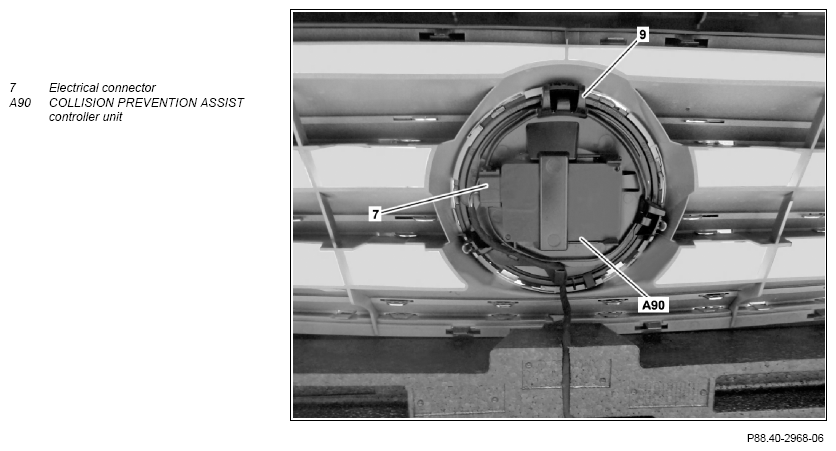

Shown on model 246 with code 252 (COLLISION PREVENTION ASSIST)

	Risk of injury due to fan starting unexpectedly	Do not reach into the rotation or hazard area of the fan. Wear closed and close-fitting work clothes. Model 242 with engine 780	AS20.40-Z-0001-01A
	Notes on preventing damage to electronic components due to a magnetic tool		AH54.00-P-0002-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install Mercedes star
1.1	Turn Mercedes star (13) by approx. 15° counterclockwise and remove from radiator grille	Model 117, 156, 166, 176, 242, 246 with code 239 (DISTRONIC PLUS) Model 117, 166, 176, 231, 242, 246 with code 233 (DISTRONIC PLUS) Ensure that the catch hooks of Mercedes star (13) first engage in the radiator grille.
1.2	Carefully unclip and remove Mercedes star (13) using a suitable tool at arrows (A)	Model 117, 166 except code 233 (DISTRONIC PLUS) except code 239 (DISTRONIC PLUS) Model 156 except code 239 (DISTRONIC PLUS) Model 176, 242, 246 except code 233 (DISTRONIC PLUS) except code 239 (DISTRONIC PLUS) Model 231 except code 233 (DISTRONIC PLUS)
2	Release and disconnect electrical connector (7) and remove COLLISION PREVENTION ASSIST control unit (A90)	Model 176, 242, 246 with code 252 (COLLISION PREVENTION ASSIST)
3	Check retaining lugs on Mercedes star (13)	If complaint present ↓ Replace Mercedes star (13).
4	Release carrier plate (14) with extraction hooks at arrows (B), detach and remove in the direction of the arrow (C)	Model 117, 166 except code 233 (DISTRONIC PLUS) except code 239 (DISTRONIC PLUS) Model 156 except code 239 (DISTRONIC PLUS) Model 176, 242, 246 except code 233 (DISTRONIC PLUS) except code 239 (DISTRONIC PLUS) except code 252 (COLLISION PREVENTION ASSIST) Model 231 except code 233 (DISTRONIC PLUS) When removing carrier plate (14). Extraction hook	Fig 1
5	Install in the reverse order

Fig 1: Identifying Extraction Hook (140 589 02 33 00)

Courtesy of MERCEDES-BENZ USA
