Remove/Install 360° Camera In Outside Mirror - AR54.30-P-3002GQ
MODEL 166, 292 with CODE 501 (360° camera)
MODIFICATION NOTES
| 21.8.15 | "Perform initial startup of left side 360° camera or right side 360° camera using the diagnostic system" added. | Operation step 7 |

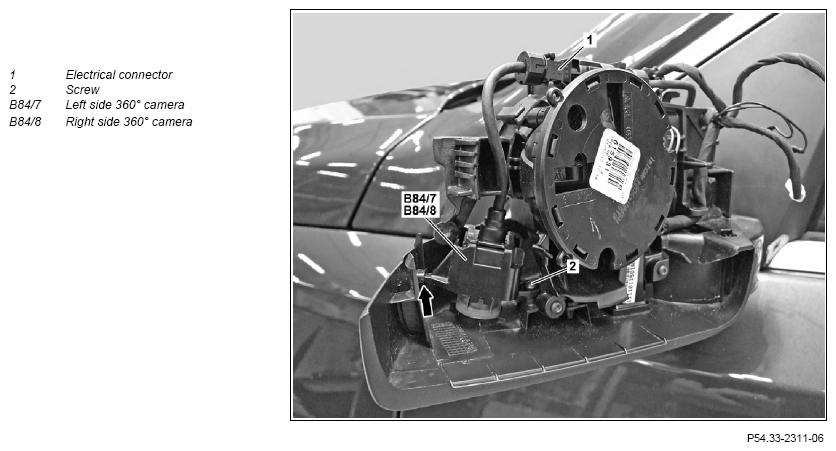

Shown on model 166
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and remove transmitter key | ||
| 2 | Remove upper cover of outside mirror | AR88.70-P-9040RTA | |
| 3 | Disconnect electrical connector (1) | ||
| 4 | Unscrew bolt (2) | ||
| 5.1 | Carefully disengage 360° camera - left side camera (B84/7) or 360° camera - right side camera (B84/8) from lower cover (arrow) of outside mirror then remove | Model 166 with code 501 (360° camera) The lens will otherwise be damaged. |
|
| 5.2 | Carefully remove 360° camera - left side camera (B84/7) or 360° camera - right side camera (B84/8) from lower cover (arrow) of outside mirror | Model 292 with code 501 (360° camera) The lens will otherwise be damaged. |
|
| 6 | Install in the reverse order | ||
| 7 |
Perform initial startup of left side 360° camera (B84/7) or right side 360° camera (B84/8) using the diagnostic system | If the left side 360° camera (B84/7) or right side 360° camera (B84/8) was replaced. | AD00.00-P-2000-04A |
| 8.1 |
Calibrate left side 360° camera (B84/7) or right side 360° camera (B84/8) using the diagnostic system | If the left side 360° camera (B84/7) or the right side 360° camera (B84/8) was removed. | AD00.00-P-2000-04A |
| 8.2 |
Calibrate all the cameras for the 360° camera system using the diagnostic system | If the left side 360° camera (B84/7) and the right side 360° camera (B84/8) were removed. | AD00.00-P-2000-04A |
