Remove/Install Outside Mirror Trim - AR88.70-P-9040RTA
MODEL 164, 251 as of model year 2011
MODEL 166
MODEL 292

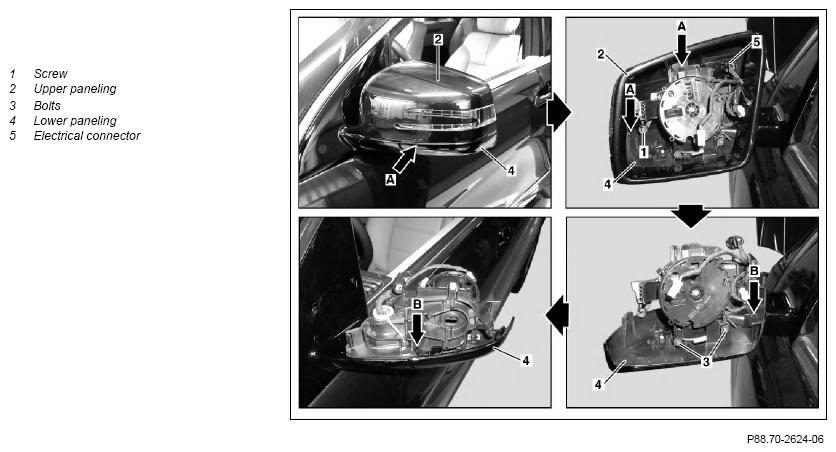

Shown on model 251

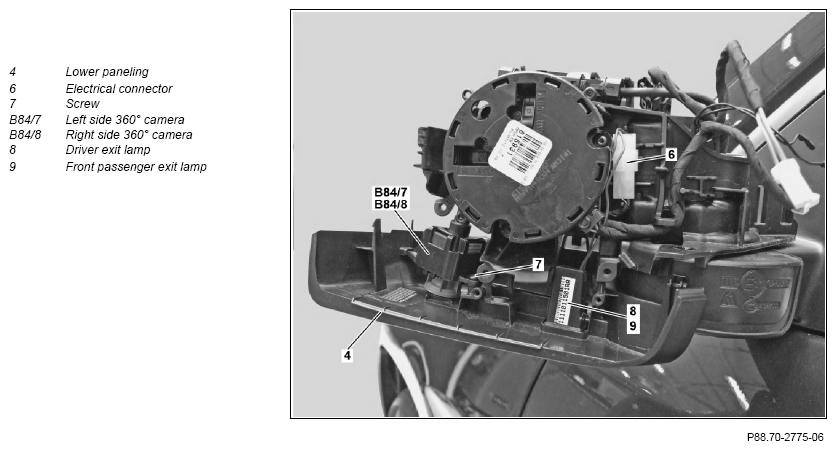

Shown on model 166.873
| Remove/install | |||
| 1 | Remove mirror glass | AR88.70-P-9020CW | |
| 2 | Disconnect electrical connection (5) | ||
| 3 | Remove screw/bolt (1) | ||
| 4 | Lift catch hooks (arrows A) and remove upper paneling (2) upward | Figure | |
| 5 | Remove bolts (3) | ||
| 6 | Disconnect electrical connector (6) on driver exit lamp (8) or passenger exit lamp (9) | Model 166, 292 | |
| 7 | Unscrew bolt (7) and carefully remove 360° degree left side camera (B84/7) and 360° right side camera (B84/8) from lower paneling (4) of outside mirror | Model 166, 292 with code 501 (360° camera) | |
| 8 | Unlock catch hooks (arrows B) and remove lower paneling (4) downward | Figure | |
| 9 | Install in the reverse order | ||
| 10 |
Calibrate 360° degree left side camera (B84/7) and 360° right side camera (B84/8) with diagnostic system | AD00.00-P-2000-04A |
