Gap Dimensions On Hoods, Doors And Lids - AR60.00-P-0700-01GQ
MODEL 166, 292
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 166 | Model 292 | |||
|---|---|---|---|---|---|---|

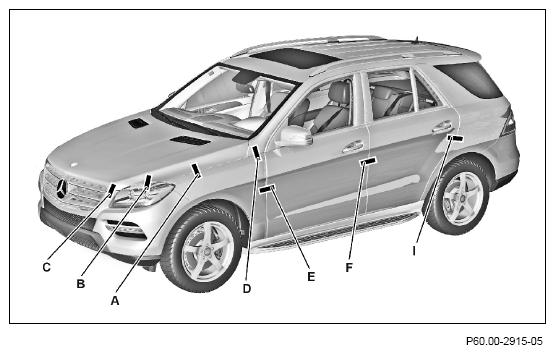

| BE60.00-P-1001-01Z | Gap dimension | Engine hood to fender | Dimension "A" | mm | 3, 8 (± 1) | 3, 0 (± 0, 5) |
| Engine hood to headlamp | Dimension "B" | mm | 3, 9 (± 1) | 3, 5 (± 1) | ||
| Engine hood to bumper | Dimension "C" | mm | 5, 4 (± 1, 5) | 4, 5 (± 1, 5) | ||
| Fender to A-pillar | Dimension "D" | mm | 3, 5 (± 1) | 3, 0 (± 0, 5) | ||
| Front door to fender | Dimension "E" | mm | 4, 3 (± 0, 7) | 4, 0 (+1/-0, 5) | ||
| Front door to rear door | Dimension "F" | mm | 4, 8 (± 0, 7) | 4, 5 (+1/-0, 5) | ||
| Rear door to rear fender | Dimension "I" | mm | 4, 3 (± 0, 7) | 3, 5 (+1/-0, 5) | ||
| For picture, see | AR60.00-P-0700-01GQ | AR60.00-P-0700-01GQ | ||||
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 166 | Model 292 | |||
|---|---|---|---|---|---|---|

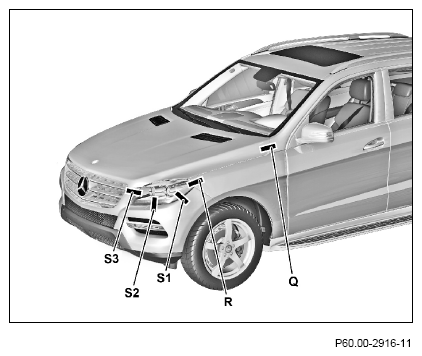

| BE60.00-P-1002-01Z | Gap dimension | Bumper to headlamp | Dimension "S1" | mm | 3, 0 (± 0, 5) | 2, 0 (± 1) |
| Dimension "S2" | mm | 3, 0 (± 0, 5) | 2, 0 (± 1) | |||
| Dimension "S3" | mm | 3, 0 (± 0, 5) | 3, 0 (± 1) | |||
| Fender to headlamp | Dimension "R" | mm | 3, 9 (± 1) | 3, 0 (± 1) | ||
| Engine hood to A-pillar | Dimension "Q" | mm | 3, 5 (± 1) | 4, 0 (+1, 5/-1, 0) | ||
| For picture, see | AR60.00-P-0700-01GQ | AR60.00-P-0700-01GQ | ||||
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 166 | Model 292 | |||
|---|---|---|---|---|---|---|

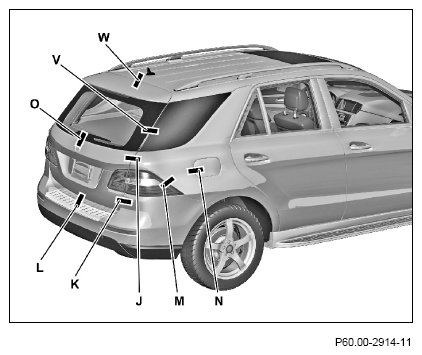

| BE60.00-P-1003-01Z | Gap dimension | Liftgate to bumper at bottom | Dimension "L" | mm | 5, 5 (± 1, 5) | 5, 5 (± 1) |
| Liftgate to rear fender | Dimension "J" | mm | 4, 8 (± 1) | 4, 0 (± 1) | ||
| Liftgate to bumper at side | Dimension "K" | mm | 4, 9 (± 1, 3) | 5, 0 (± 2) | ||
| Liftgate to roof | Dimension "W" | mm | 5, 5 (± 1, 5) | 5, 0 (± 1) | ||
| Liftgate to rear window | Dimension "O" | mm | 4, 0 (± 1, 0) | 3, 0 (± 1, 0) | ||
| Rear fender to backup lamp | Dimension "M" | mm | 1, 4 (± 0, 7) | 1, 0 (+1-/0, 5) | ||
| D-pillar to rear window | Dimension "V" | mm | - | 4, 5 (± 1, 5) | ||
| For picture, see | AR60.00-P-0700-01GQ | AR60.00-P-0700-01GQ | ||||
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 166 | Model 292 | |||
|---|---|---|---|---|---|---|
| BE60.00-P-1004-01Z | Gap dimension | Fuel filler flap | Dimension "N" | mm | 2, 7 (± 0, 3) | 2, 0 (± 0, 5) |
| For picture, see | AR60.00-P-0700-01GQ | AR60.00-P-0700-01GQ | ||||
Shown on model 166.0
Shown on model 166.0
Shown on model 166.0
- Check gap dimensions on hoods, doors and covers with
feeler gauge as shown in drawings.
The gap should not run wedge-shaped or be too narrow at points. Deviations from parallel gap should be max. 0.5 mm over the entire length. If the inside clearance is too large or too small, the movable body parts must be centered accordingly. The reference measurements apply only for repair work on vehicles damaged in accidents.
