Remove/Install Oil Pump Radial Shaft Sealing Ring - AR27.40-P-0300EH
TRANSMISSION 724.2
| Risk of death when touching components on vehicles with high-voltage on-board electrical system | Do not touch damaged or defective components and open lines of the high-voltage on-board electrical system. Persons who wear electronic implants (e.g. cardiac pacemakers) must not carry out any work on high-voltage on-board electrical systems. | AS54.00-Z-0001-01A | |
| Note on high-voltage on-board electrical system | AH54.00-P-0010-01A | ||
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Evaluation of high-voltage components | AH54.00-P-6500-01SXH | ||
| Remove/install | |||
| 1 | Remove transmission | Transmission 724.2 in model 166 with engine 276.8 | AR27.10-P-0005GQA |
| Transmission 724.2 in model 205 with engine 274.9 | AR27.10-P-0502LWH | ||
| Transmission 724.2 in model 253 with engine 274.9 | AR27.10-P-0005LVH | ||
| Transmission 724.2 in model 205 with engine 651 | AR27.10-P-0502RFH | ||
| Transmission 724.2 in model 222 with engine 651 | AR27.10-P-0502LFY | ||
| Transmission 724.2 in model 222 with engine 276.9 | AR27.10-P-0502LFH | ||
| Transmission 724.2 in model 212.095/195 with engine 276.9 Transmission 724.2 in model 212.098/298 with engine 651.9 |
AR27.10-P-0502EH | ||

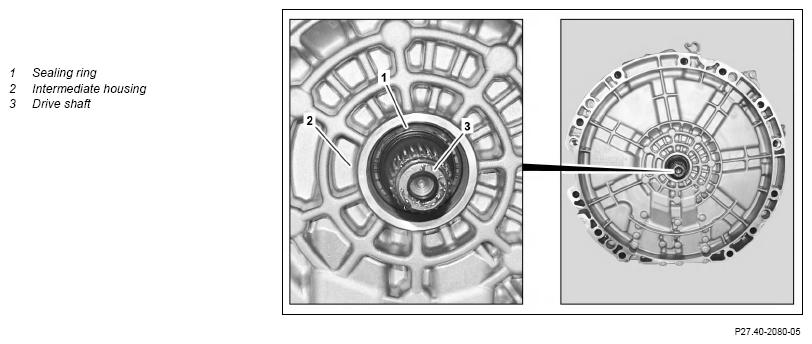

| 2 | Using suitable screwdriver pry out sealing ring (1) from intermediate housing (2) | Carefully pry out sealing ring (1). Otherwise the sealing surfaces on the drive shaft (3) and intermediate housing (2) may be damaged. Install new sealing ring (1). |
Fig 1 |
| 3 | Install in the reverse order |
