Remove/Install Automatic Transmission - AR27.10-P-0005GQA

TRANSMISSION 724.2 in MODEL 166

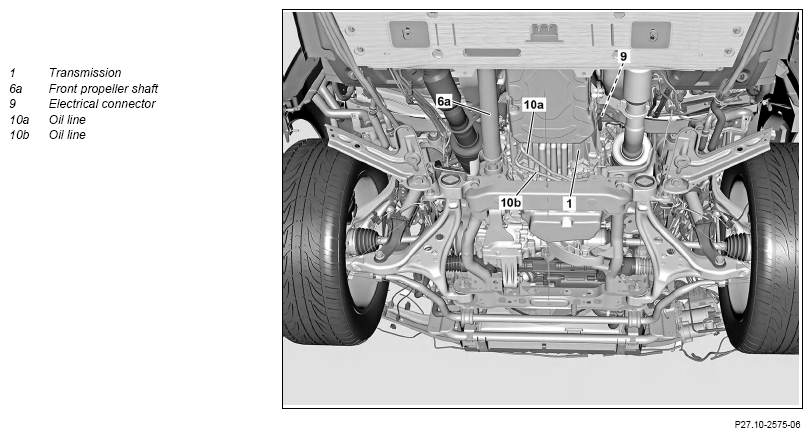

G12082446

Shown on transfer case with code 430 (On & off-road package)

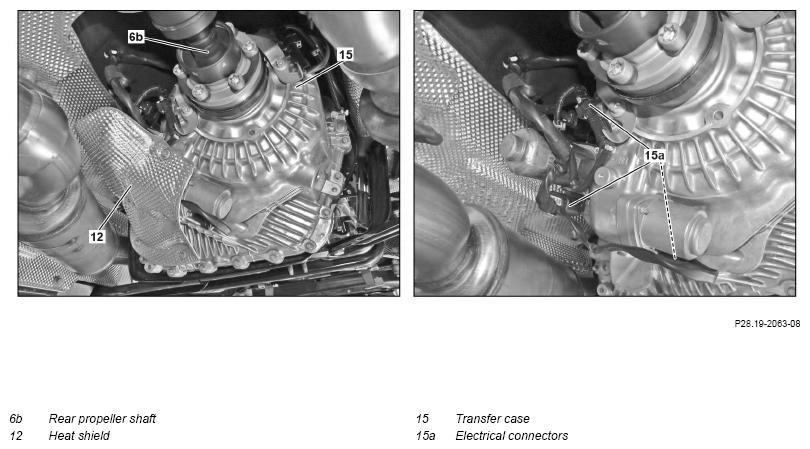

G12082447
  Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
  Risk of death  when touching components on vehicles with high-voltage on-board electrical system Do not touch damaged or defective components and open lines of the high-voltage on-board electrical system. Persons who wear electronic implants (e.g. cardiac pacemakers) must not  carry out any work on high-voltage on-board electrical systems. AS54.00-Z-0001-01A
WARNING Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
CAUTION Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil Wear protective gloves, protective clothing and safety glasses.
Do not pour transmission oil into beverage bottles.
AS00.40-Z-0001-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
AS00.00-Z-0017-01A
  Note on high-voltage on-board electrical system   AH54.00-P-0010-01A
  Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
  Notes on threaded connections fastened using a tightening angle-based tightening process   AH00.00-P-0020-01A
  Notes on bolted connections with self tapping screws   AH00.00-P-0007-01SF
  Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
  Evaluation of high-voltage components   AH54.00-P-6500-01SXH
  Notes on automatic transmission   AH27.19-P-0001-01NKB
REMOVINGINSTALLING Remove/install
1 Perform disable for the high-voltage on-board electrical system Transmission 724.2 in model 166.063 AR54.10-P-1150GQA
2 Set selector lever to position N and release parking brake
3 Disconnect ground line from battery   AR54.10-P-0003GZ
4 Secure vehicle on vehicle lift   AR00.60-P-0100GZ
5 Remove underfloor paneling   AR61.30-P-1001GQ
6 Disconnect high-voltage electrical line from refrigerant compressor and expose underneath Transmission 724.2 in model 166.063 AR83.55-P-5311GQA
7 Detach ground lines from transmission (1) TORQUE SPECIFICATION Bolt, ground line to transmission housing *BA27.10-P-1028-04G
8 Remove left and right brackets of catalytic converter from transmission (1) TORQUE SPECIFICATION Bolt, exhaust system bracket to transmission *BA49.10-P-1020-01AK
9 Separate rear exhaust system at connecting point and remove   AR49.10-P-7100GQA
10 Unclip electrical lines of left and right oxygen sensor upstream and downstream of catalytic converter from transmission (1)   AR07.52-P-5303GQC
11 Detach heat shield from transmission (1)   AR27.40-P-0700-01GZ
TORQUE SPECIFICATION Bolt, heat shield to sprag *BA27.10-P-1013-04G
12 Unlock electrical connector (9) at electrohydraulic controller unit, disconnect and unclip line from transmission (1)
13 Detach oil lines (10a, 10b) from transmission (1) and oil pan and set aside   AR27.55-P-0600GQ
14 Remove heat shield (12) from transfer case (15) Transmission 724.2 in model 166 with code 430 (On & off-road package)
15 Release, detach and unclip electrical connections (15a) on transfer case (15) Transmission 724.2 in model 166 with code 430 (On & off-road package)
16 Remove rear propeller shaft (6b) at output flange to rear axle from transfer case (15), place to one side and fix in place Tightening procedure for rear propeller shaft to transfer case AR41.10-P-0050-17GZ
INSTALLATION IMPORTANT Observe tightening procedure for rear propeller shaft (6b) to transfer case (15). AR41.10-P-0050GQ
TORQUE SPECIFICATION Self-locking screw/bolt of propeller shaft a transfer case/adapter housing (to rear axle) *BA41.10-P-1001-01F
SPECIAL TOOL Retainer wrench Fig 1
17 Detach front propeller shaft (6a) to front axle at output flange of transfer case (15), place to one side and fix in place Tightening procedure for front propeller shaft AR41.10-P-0070-03GZ
INSTALLATION IMPORTANT Observe tightening procedure for front propeller shaft (6a). AR41.10-P-0070GQ
TORQUE SPECIFICATION Self-locking bolt, drive shaft to front axle gear *BA41.10-P-1004-01F
TORQUE SPECIFICATION Self-locking bolt, drive shaft to transfer case (to front axle) *BA41.10-P-1003-01F
SPECIAL TOOL Retainer wrench Fig 1
18 REFER TO SPECIAL TOOLS Prop up and strap down transmission (1) using major-assembly support and mounting plate
000 588 10 62 00 Support plate WS26.00-P-3309B
REFER TO SPECIAL TOOLS 000 588 11 62 00 Major assembly mount   WS01.00-P-0092B
19 Detach high-voltage distributor from power electronics Transmission 724.2 in model 166.063 AR54.10-P-1400GQA
20 Remove engine cross member at rear   AR22.10-P-1180GQ
21 Detach starter from transmission (1) IMPORTANT Place starter with attached lines to one side and secure against falling down. AR15.30-P-7100GQ
22 Remove screws around circumference of transmission (1) TORQUE SPECIFICATION Bolt/nut, transmission to engine *BA27.10-P-1001-04G
23 Remove transmission (1) with transfer case (15) and with high-voltage distributor
REFER TO SPECIAL TOOLS 000 588 10 62 00 Support plate   WS26.00-P-3309B
REFER TO SPECIAL TOOLS 000 588 11 62 00 Major assembly mount   WS01.00-P-0092B
    IMPORTANT Lower the major assembly mount slowly and secure the torque converter to prevent it from falling out.
    INSTALLATION IMPORTANT Align the holes of the torque converter with the holes in the driver spider.
24 Install in the reverse order
INSPECT Check
25 Check transmission oil level and correct if necessary
REFER TO SELF-DIAGNOSTIC SYSTEMS   NOTES Follow the prescribed work procedure exactly and observe the Specifications for Operating Fluids.
Otherwise the transmission (1) will be damaged.
AD00.00-P-2000-04A
26 Perform transmission adaptation After replacing the transmission (1), the electric machine rotor position sensor or the electric machine, or after repairing the transmission (1).
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-04A
WARNING Risk of burn injuries  , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning  caused by skin contact with solid components of the exhaust. Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area. AS49.00-Z-0001-01A
WARNING Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
27 Conduct engine test run, and check transmission (1) for leak tightness and proper operation
AUTOMATIC TRANSMISSION COMPLETE

Number Designation Transmission 724.2
BA27.10-P-1001-04G Bolt/nut, transmission to engine Nm 39
AUTOMATIC TRANSMISSION COMPLETE

Number Designation Transmission 724.2
BA27.10-P-1013-04G Bolt, heat shield to sprag Nm 9
AUTOMATIC TRANSMISSION COMPLETE

Number Designation Transmission 724.2
BA27.10-P-1028-04G Bolt, ground line to transmission housing Nm 20
PROPELLER SHAFT

Number Designation Model 166
BA41.10-P-1001-01F Self-locking screw/bolt of propeller shaft at transfer case/adapter housing (to rear axle) Stage 1 Nm 40
Stage 2 ∠ ° 90
PROPELLER SHAFT

Number Designation Model 166
BA41. 10-P-1003-01F Self-locking bolt, drive shaft to transfer case (to front axle) Stage 1 Nm 40
Stage 2 ∠° 90
PROPELLER SHAFT

Number Designation Model 166
BA41.10-P-1004-01F Self-locking bolt, drive shaft to front axle gear Stage 1 Nm 40
Stage 2 ∠° 90
EXHAUST SYSTEM

Number Designation Engine 276 in model 166
BA49.10-P-1020-01AK Bolt, exhaust system bracket to transmission Stage 1 Nm 8
Stage 2 ∠° 90
Fig 1: Identifying Retainer Wrench (164 589 02 07 00)
G12082448Courtesy of MERCEDES-BENZ USA
