Overview Of System Components Of Parking Assistance Systems - GF54.00-P-9997GN
MODEL 166 as of model year 2016
with CODE 218 (Rear view camera)
MODEL 166 as of model year 2016
with CODE 235 (Active Parking Assist with PARKTRONIC)
MODEL 166 as of model year 2016
with CODE 501 (360° camera)
MODEL 292
with CODE 218 (Rear view camera)
MODEL 292
with CODE 235 (Active Parking Assist with PARKTRONIC)
MODEL 292
with CODE 501 (360° camera)
The name for "Active Parking Assist with PARKTRONIC" has been changed; as of MYJ17/2, the designation will be "Parking Pilot". The nomenclature change is not taken into account in this documentation.

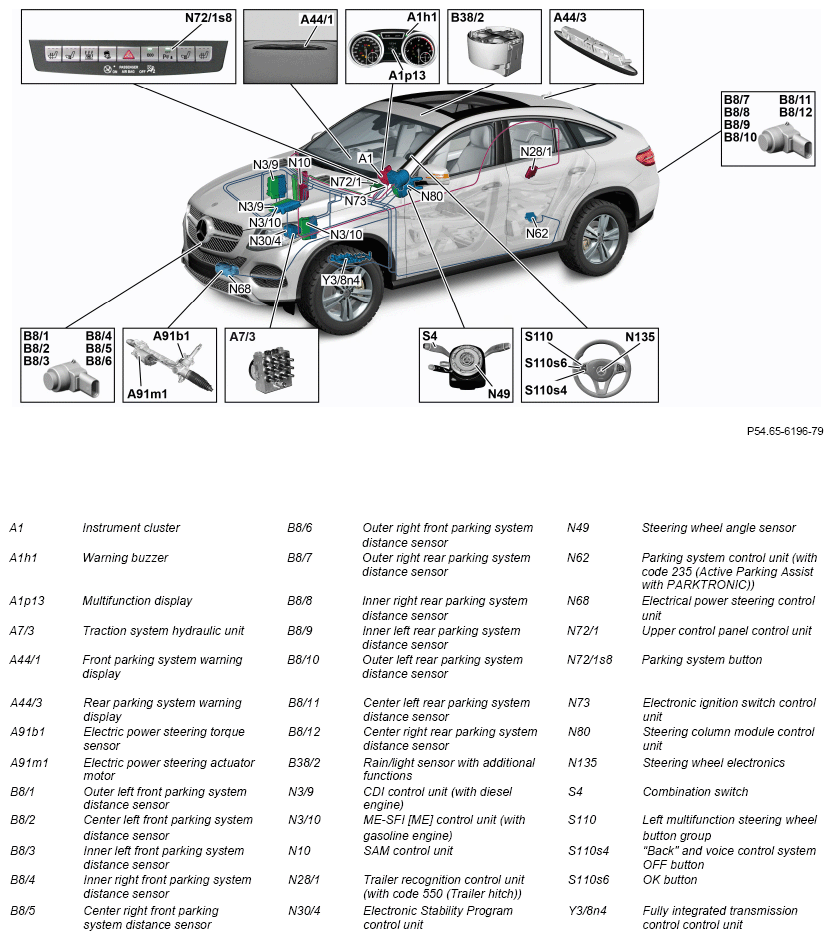

Shown on model 292 (with code 235 (Active Parking Assist with PARKTRONIC))

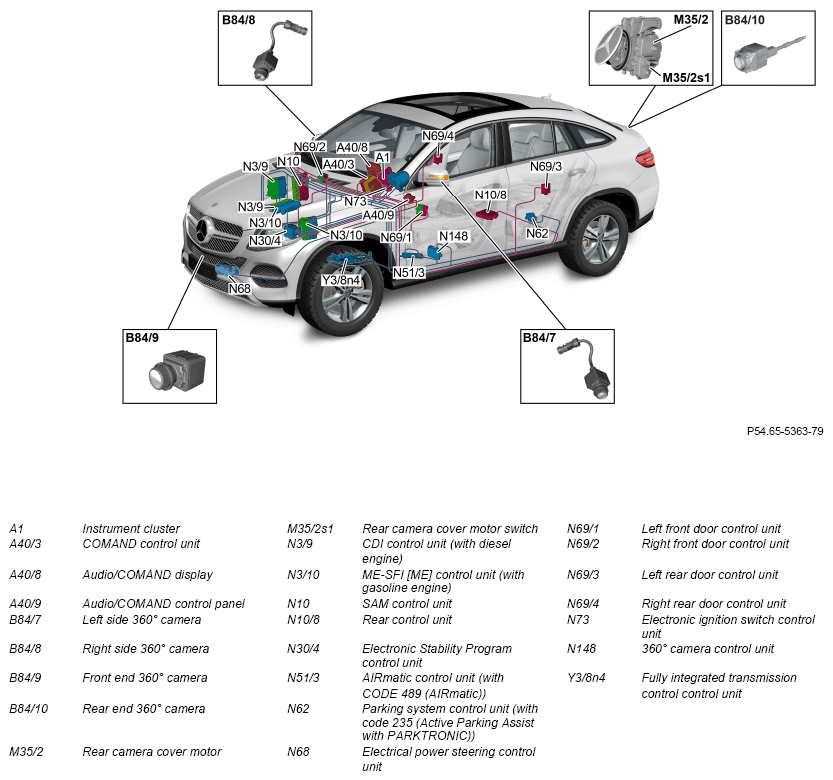

Shown on model 292 (with CODE 501 (360° camera))

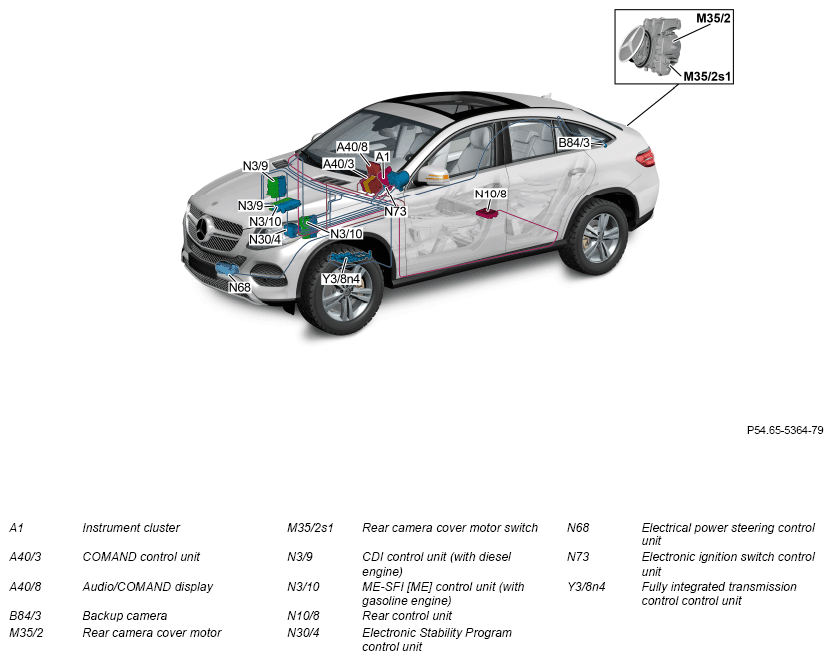

Shown on model 292 (with CODE 218 (Reversing camera))
| Component description for instrument cluster | A1 | GF54.30-P-6000GN | |
| Component description for COMAND controller unit | Model 166 as of model year 2016 with code 218 (Rear view camera) with code 531 (COMAND APS) Model 166 as of model year 2016 with code 501 (360° camera) with code 531 (COMAND APS) Model 292 with code 218 (Rear view camera) with code 531 (COMAND APS) Model 292 with code 501 (360° camera) with code 531 (COMAND APS) A40/3 |
GF82.85-P-3136GN | |
| Component description for Audio/COMAND display | A40/8 | GF54.30-P-6150GN | |
| Component description for Audio/COMAND control panel | A40/9 | GF54.21-P-4501GN | |
| Reversing camera component description | Model 166 as of model year 2016 with code 218 (Rear view camera) Model 292 with code 218 (Rear view camera) B84/3 |
GF54.65-P-5040GN | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080GN | |
| Component description for CDI control unit | Model 166 with engine 642.8 as of model year 2016 with code 218 (Rear view camera) Model 166 with engine 642.8 as of model year 2016 with code 235 (Active Parking Assist with PARKTRONIC) Model 166 with engine 642.8 as of model year 2016 with code 501 (360° camera) Model 292 with engine 642.8 with code 218 (Rear view camera) Model 292 with engine 642.8 with code 235 (Active Parking Assist with PARKTRONIC) Model 292 with engine 642.8 with code 501 (360° camera) |
GF07.16-P-6000OGF | |
| Model 166 with engine 651.9 as of 6/1/15 as of model year 2016 with code 218 (Rear view camera) Model 166 with engine 651.9 as of 6/1/15 as of model year 2016 with code 235 (Active Parking Assist with PARKTRONIC) Model 166 with engine 651.9 as of 6/1/15 as of model year 2016 with code 501 (360° camera) N3/9 |
GF07.16-P-6000OLF | ||
| Component description for ME-SFI (ME) control unit | Model 166.063 with engine 276.8 as of model year 2016 with code 218 (Rear view camera) Model 166.063 with engine 276.8 as of model year 2016 with code 235 (Active Parking Assist with PARKTRONIC) Model 166.063 with engine 276.8 as of model year 2016 with code 501 (360° camera) |
GF07.61-P-6000MMM | |
| Model 166 (except 166.063) with engine 276.8 as of model year 2016 with code 218 (Rear view camera) Model 166 (except 166.063) with engine 276.8 as of model year 2016 with code 235 (Active Parking Assist with PARKTRONIC) Model 166 (except 166.063) with engine 276.8 as of model year 2016 with code 501 (360° camera) Model 292 with engine 276.8 with code 218 (Rear view camera) Model 292 with engine 276.8 with code 235 (Active Parking Assist with PARKTRONIC) Model 292 with engine 276.8 with code 501 (360° camera) |
GF07.61-P-6000MMX | ||
| Model 166 with engine 157.9, 278.9 as of model year 2016 with code 218 (Rear view camera) Model 166 with engine 157.9, 278.9 as of model year 2016 with code 235 (Active Parking Assist with PARKTRONIC) Model 166 with engine 157.9, 278.9 as of model year 2016 with code 501 (360° camera) Model 292 with engine 157.9, 278.9 with code 218 (Rear view camera) Model 292 with engine 157.9, 278.9 with code 235 (Active Parking Assist with PARKTRONIC) Model 292 with engine 157.9, 278.9 with code 501 (360° camera) |
GF07.61-P-6000MMY | ||
| Model 166 with engine 276.9 as of model year 2016 with code 218 (Rear view camera) Model 166 with engine 276.9 as of model year 2016 with code 235 (Active Parking Assist with PARKTRONIC) Model 166 with engine 276.9 as of model year 2016 with code 501 (360° camera) N3/10 |
GF07.61-P-6000MNG | ||
| SAM control unit, component description | N10 | GF54.21-P-4157GN | |
| Rear control unit, component description | N10/8 | GF54.21-P-4134GN | |
| Component description for trailer recognition control unit | Model 166 as of model year 2016 with code 235 (Active Parking Assist with PARKTRONIC) with code 550 (Trailer coupling) Model 292 with code 235 (Active Parking Assist with PARKTRONIC) with code 550 (Trailer coupling) N28/1 |
GF31.19-P-4050GN | |
| Component description for Electronic Stability Program control unit | Model 166 (except 166.063) as of model year 2016 with code 218 (Rear view camera) Model 166 (except 166.063) as of model year 2016 with code 235 (Active Parking Assist with PARKTRONIC) Model 166 (except 166.063) as of model year 2016 with code 501 (360° camera) Model 292 with code 218 (Rear view camera) Model 292 with code 235 (Active Parking Assist with PARKTRONIC) Model 292 with code 501 (360° camera) |
GF42.45-P-5119GN | |
| Model 166.063 as of model year 2016 with code 218 (Rear view camera) Model 166.063 as of model year 2016 with code 235 (Active Parking Assist with PARKTRONIC) Model 166.063 as of model year 2016 with code 501 (360° camera) N30/4 |
GF42.45-P-5119GRH | ||
| AIRMATIC control unit, component description | Model 166 as of model year 2016 with code 489 (AIRMATIC) with code 501 (360° camera) Model 292 with code 489 (AIRMATIC) with code 501 (360° camera) N51/3 |
GF32.22-P-5110GN | |
| Parking system control unit, component description | Model 166 as of model year 2016 with code 235 (Active Parking Assist with PARKTRONIC) Model 292 with code 235 (Active Parking Assist with PARKTRONIC) N62 |
GF54.65-P-5004GN | |
| Electrical power steering control unit (ES), component description | N68 | GF46.35-P-7010GN | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001GN | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009GN | |
| Component description for rear door control unit | N693, N694 | GF72.29-P-6021GN | |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040GN | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001GN | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051GN | |
| Component description for 360 degree viewing system control unit | Model 166 as of model year 2016 with code 501 (360° camera) Model 292 with code 501 (360° camera) N148 |
GF54.65-P-5003GN | |
| Component description for fully integrated transmission control unit | Model 166 with transmission 725.0 as of model year 2016 with code 218 (Rear view camera) Model 166 with transmission 725.0 as of model year 2016 with code 235 (Active Parking Assist with PARKTRONIC) Model 166 with transmission 725.0 as of model year 2016 with code 501 (360° camera) |
GF27.60-P-5165ANF | |
| Model 292 with transmission 725.0 with code 218 (Rear view camera) Model 292 with transmission 725.0 with code 235 (Active Parking Assist with PARKTRONIC) Model 292 with transmission 725.0 with code 501 (360° camera) Y38n4 |
GF27.60-P-5165ANJ | ||
| Table of contents for function description of parking assistance systems | GF54.00-P-0997GN |
