Component Description For Audio/Comand Display - GF54.30-P-6150GN

MODEL 166 as of model year 2016

MODEL 292

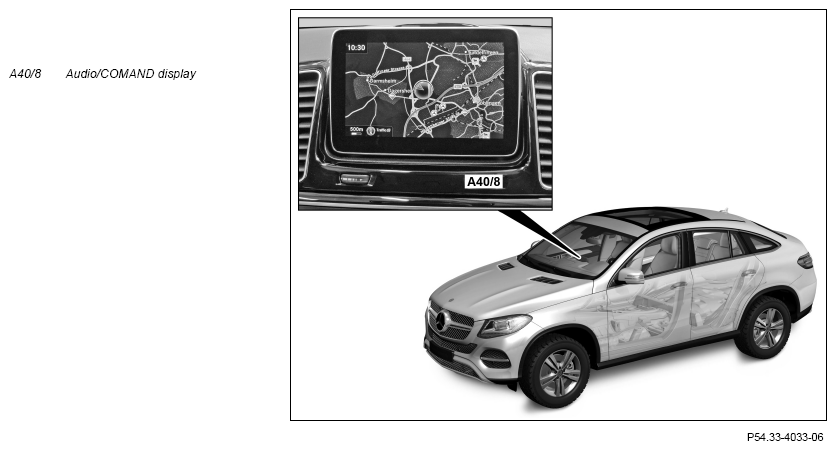

Shown on model 292

Location

The Audio/COMAND display is fitted to the top center of the instrument panel.

Tasks

The Audio/COMAND display provides a uniform display of user-related operating and information windows and video images.

The Audio/COMAND display receives the following signals:

• Terminal 30g and terminal 31
• Control signals (e.g. switching on) via telematics CAN (CAN A) from the audio equipment
• Picture signals via the LVDS interface (low voltage differential signaling) from the audio equipment

The Audio/COMAND display evaluates the input factors in the integrated microprocessor and actuates the color screen.

Body

The Audio/COMAND display has the following characteristics:

• 800 X 480 pixel resolution
• Format 15:9
• 8 bits per color
• High-bandwidth Digital Content Protection (HDCP)
• Safety glass

Variants

The Audio/COMAND display is available in the following variants:

• 8" display (free standing) (with CODE 531 (COMAND APS) or with CODE 857 (8" display for audio 20))
• 7" display (free standing) (except CODE 531 (COMAND APS) and except CODE 857 (8" display for audio 20))

Wiring diagram for Audio/COMAND display

PE82.00-P-2080-97NBA
