Overview Of System Components, Hybrid Drive System - GF08.30-P-9999GRH
ENGINE 276.821 in MODEL 166

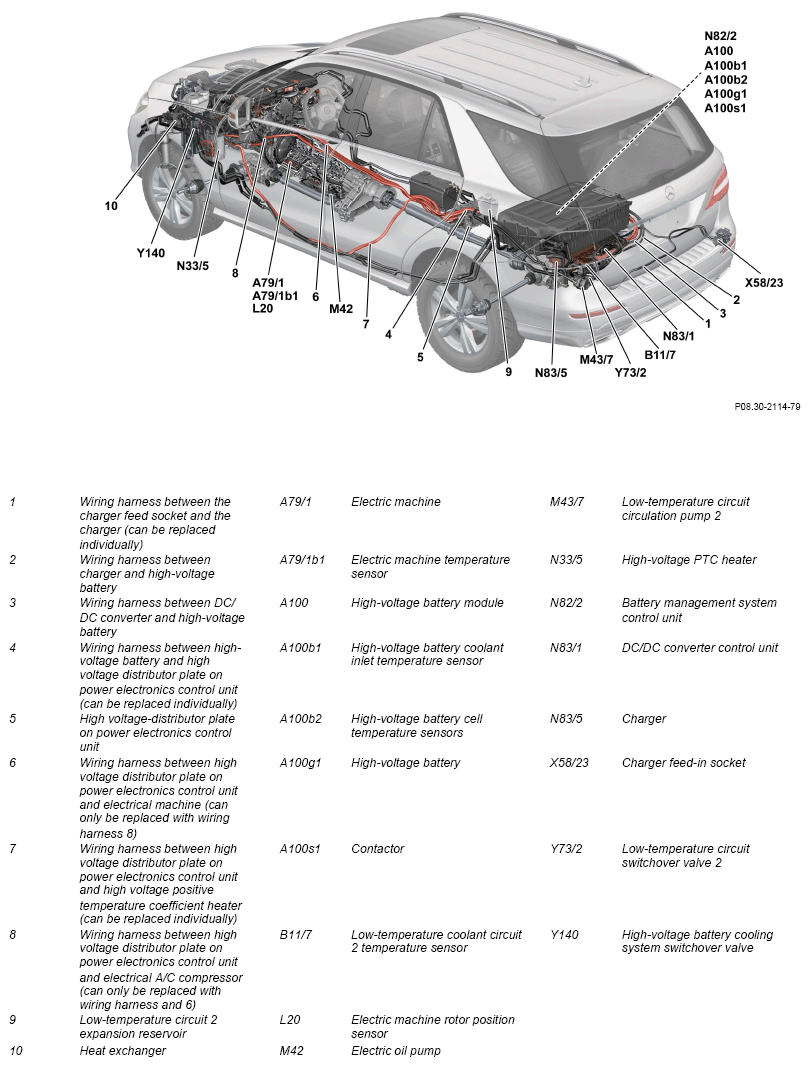

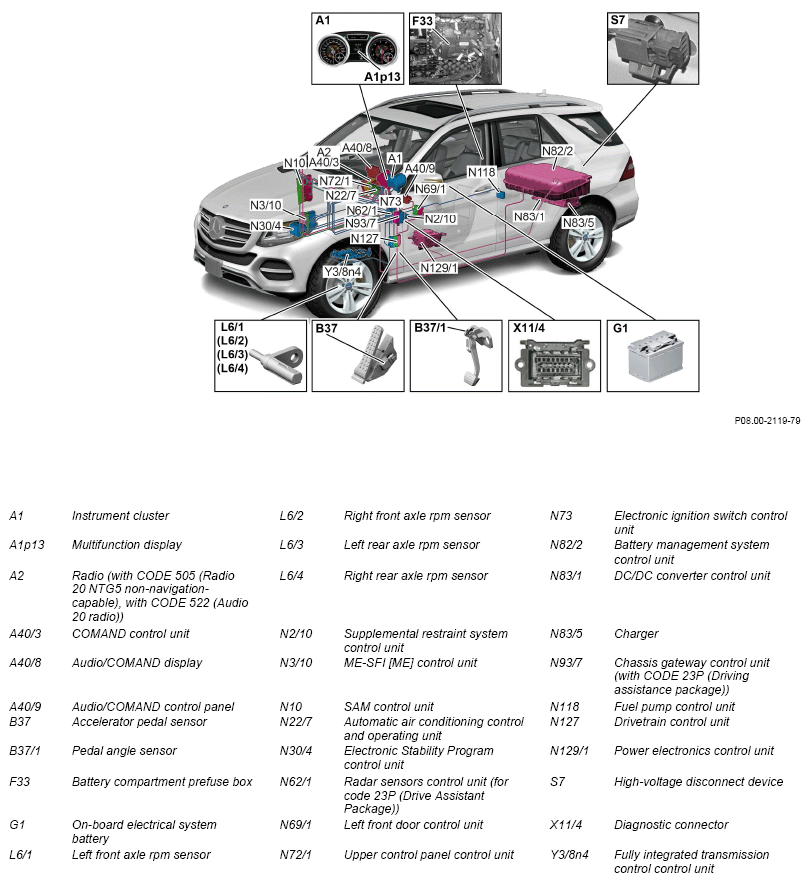

Phantom view

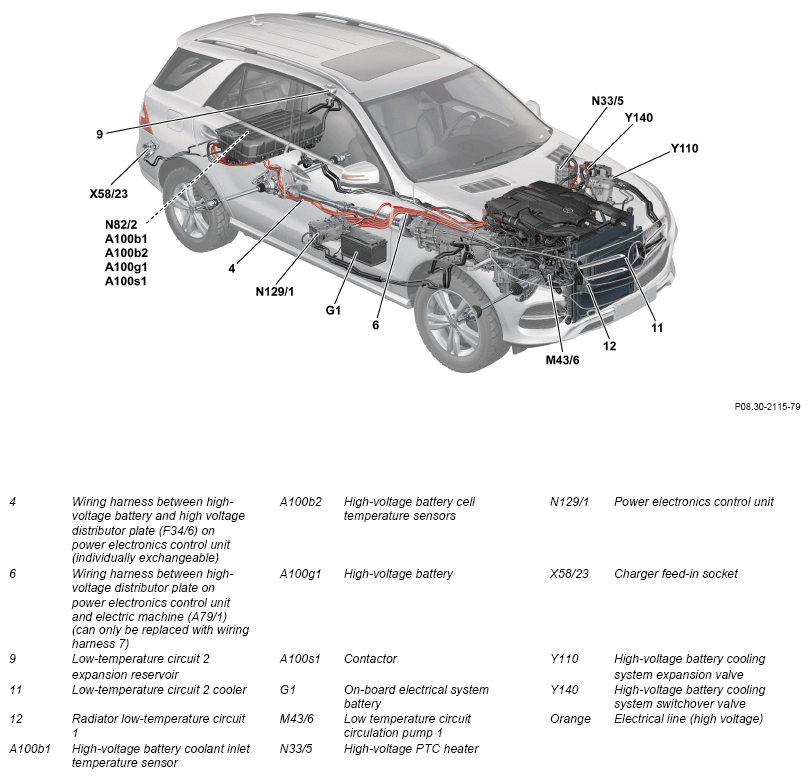

Shown on model 166.063
Shown on model 166.063

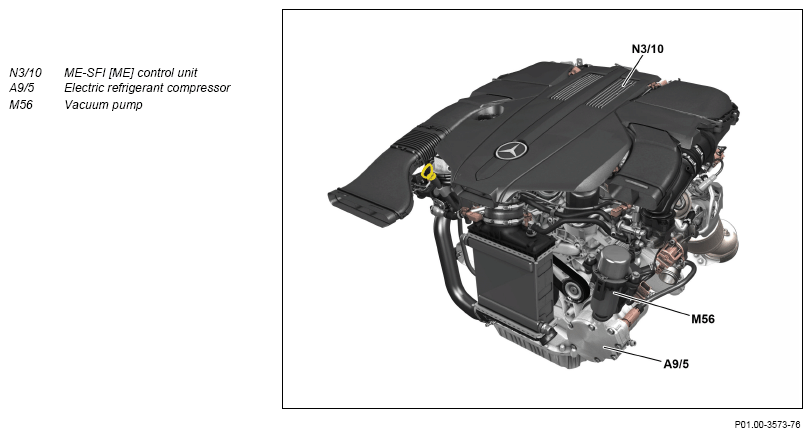

View of engine 276.8

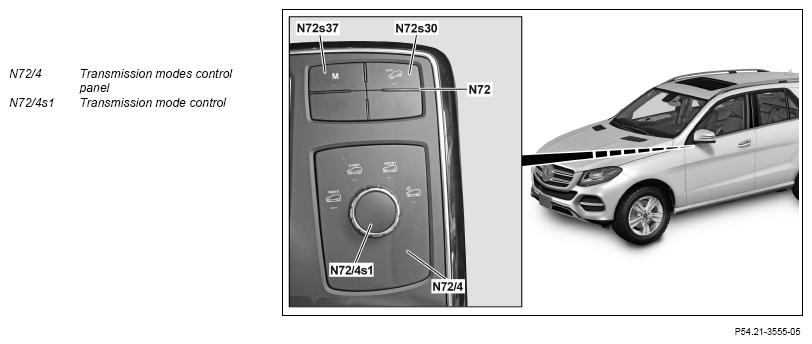

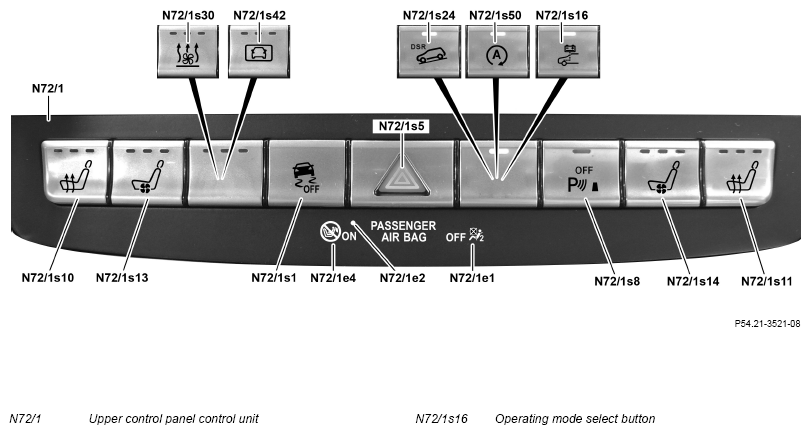

View of control panel
View of control panels

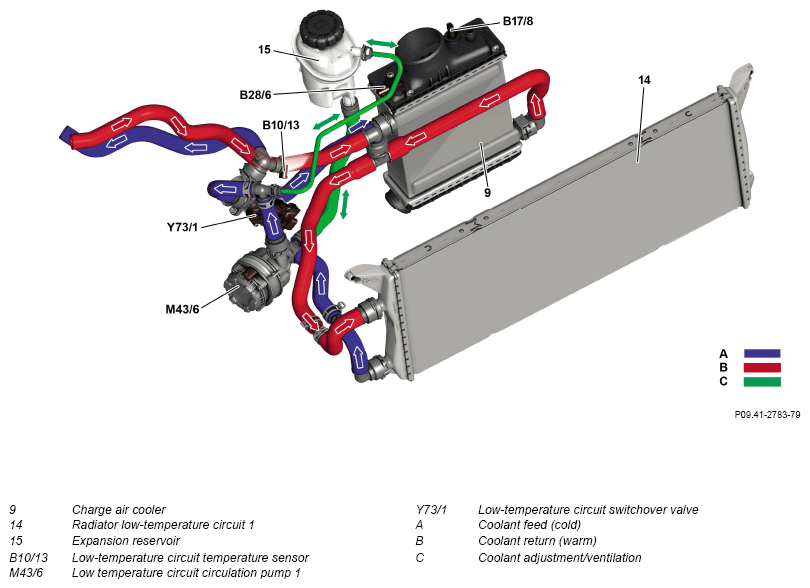

View of low-temperature circuit

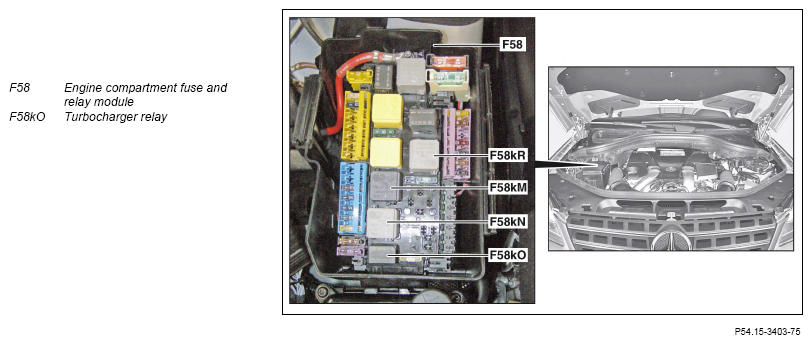

Illustration of engine compartment fuse and relay module

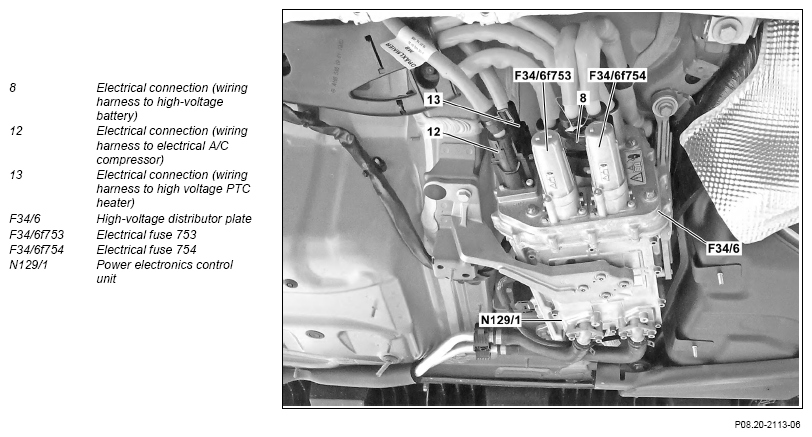

Shown on high-voltage distributor plate (F34/6) with electrical fuses

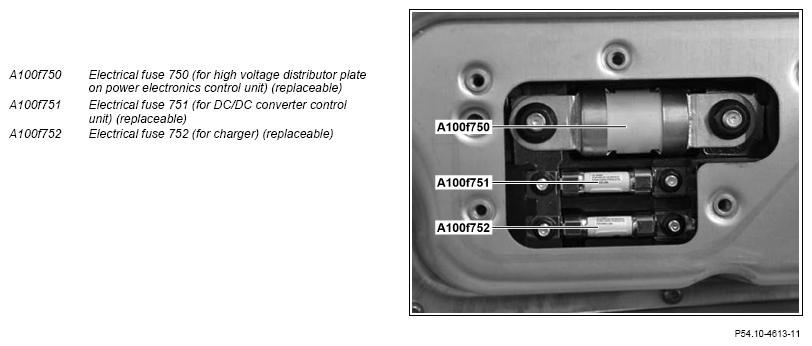

Shown on open fuse panel in high-voltage battery module
Electrical fuses in high-voltage battery
There are replaceable fuses in the high-voltage battery (electrical fuse 750, electrical fuse 751, and electrical fuse 752). These are placed under a removable cover (with interlock contact breaker point), and located in the electric circuit behind the contactor.
In this way the electrical fuses for orderly power disconnect are not under voltage.

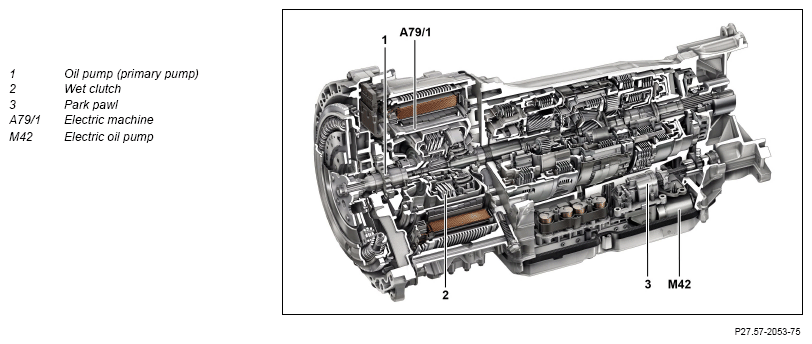

Sectional view of automatic transmission
| Component description for instrument cluster | Engine 276.821 in model 166 as of model year 2016 A1 | GF54.30-P-6000GN | |
| Component description for the radio | Engine 276.821 in model 166 as of model year 2016 with code 505 (Radio 20 NTG5, not navigation-enabled) Engine 276.821 in model 166 as of model year 2016 with code 522 (Audio 20 radio) A2 |
GF82.60-P-3122GN | |
| Component description for electric refrigerant compressor | Engine 276.821 in model 166.063 as of model year 2016 A9/5 | GF83.55-P-2110GN | |
| Component description for COMAND controller unit | Engine 276.821 in model 166 as of model year 2016 with code 531 (COMAND APS) A40/3 | GF82.85-P-3136GN | |
| Component description for Audio/COMAND display | Engine 276.821 in model 166 as of model year 2016 A40/8 | GF54.30-P-6150GN | |
| Component description for Audio/COMAND control panel | Engine 276.821 in model 166 as of model year 2016 A40/9 | GF54.21-P-4501GN | |
| Supplemental restraint system control unit, component description | Engine 276.821 in model 166 as of model year 2016 N2/10 | GF91.60-P-4080GN | |
| Component description for ME-SFI (ME) control unit | Engine 276.8 in model 166.063 as of model year 2016 N3/10 | GF07.61-P-6000MMM | |
| SAM control unit, component description | Engine 276.821 in model 166 as of model year 2016 N10 | GF54.21-P-4157GN | |
| Component description for climate control and operating unit | Engine 276.821 in model 166 as of model year 2016 N22/7 | GF83.40-P-3002GN | |
| Component description for Electronic Stability Program control unit | Engine 276.821 in model 166.063 as of model year 2016 N30/4 | GF42.45-P-5119GRH | |
| Component description for radar sensors control unit | Engine 276.821 in model 166 as of model year 2016 with code 23P (Driving Assistance package) N62/1 | GF30.30-P-3301GN | |
| Component description for left front door control unit | Engine 276.821 in model 166 as of model year 2016 N69/1 | GF72.29-P-6001GN | |
| Upper control panel control unit, component description | Engine 276.821 in model 166 as of model year 2016 N721, N721s16 | GF54.21-P-6040GN | |
| Lower control panel control unit, component description | Engine 276.821 in model 166 as of model year 2016 N724, N724s1 | GF54.21-P-6060GN | |
| Component description for the electronic ignition lock control unit | Engine 276.821 in model 166 as of model year 2016 N73 | GF80.57-P-6001GN | |
| Component description for battery management system control unit | N82/2 | GF54.10-P-3012GRH | |
| Component description for DC/DC converter control unit | N83/1 | GF54.10-P-3006GRH | |
| High-voltage charger control unit, component description | N83/5 | GF08.20-P-2000GRH | |
| Component description for chassis gateway control unit | Engine 276.821 in model 166 as of model year 2016 with code 23P (Driving Assistance package) N93/7 | GF54.21-P-1010GN | |
| Component description for fuel pump control unit | Engine 276.821 in model 166 as of model year 2016 N118 | GF47.40-P-2001MNG | |
| Drivetrain control unit, component description | Engine 276.821 in model 166.063 as of model year 2016 N127 | GF54.21-P-2141GN | |
| Component description for power electronics control unit | N129/1 | GF08.20-P-1001GRH | |
| Component description for fully integrated transmission control unit | Engine 276.821 in model 166 with transmission 724.204 Y38n4 | GF27.60-P-5165GRH | |
| Table of contents for function description - hybrid drive system | GF08.30-P-0999GRH |
