Remove/Install Airmatic Central Reservoir - AR32.22-P-2017GQ

MODEL 166.0, 292 with CODE 489 (AIRMATIC)

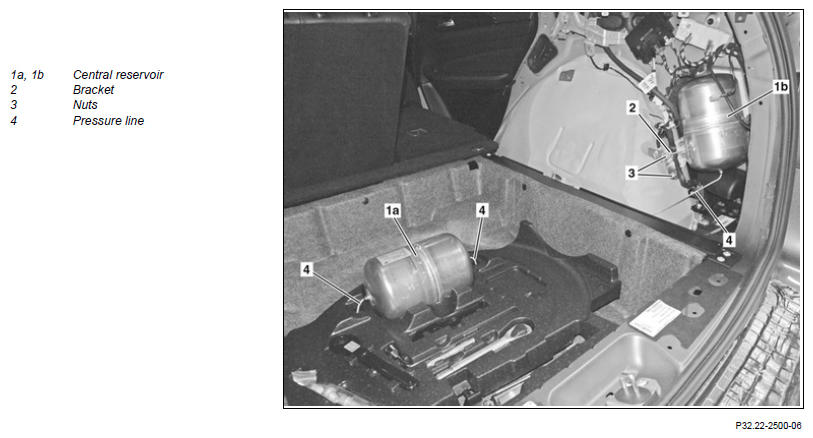

Illustrated on model 166.0

	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Notes on AIRmatic		AH32.22-P-1000-02GZ
	Remove/install
1	Raise vehicle using vehicle lift until the wheels are clear of the ground		AR00.60-P-1000GZ
2	Empty AIRmatic using diagnostic system	Empty and fill the AIRmatic as per the specifications; the complete wheels must not be touching the ground. The air springs can otherwise be damaged and fail later.	AD00.00-P-2000-04A
3	Remove load compartment floor and expose central reservoir (1a)
4	Remove right side of panel in trunk	Model 292 with code 489 (AIRMATIC)	AR68.30-P-4800GQC
		Model 166.0 with code 489 (AIRMATIC)	AR68.30-P-4800GQ
5	Detach bracket (2) of electrical feed line from threaded pin	Model 166.0 with code 489 (AIRMATIC)
6	Unscrew nuts (3) and remove central reservoir (1b)	Nut, central reservoir to wheel well/body	*BA32.22-P-1010-03B
7	Detach pressure lines (4) from central reservoir (1a, 1b)	Pressure line of air suspension to central reservoir	*BA32.22-P-1009-03B
		Socket wrench bit	Figure
		Knife Check pressure lines (4) and pressure line connections for signs of damage, if necessary ↓ Repair AIRmatic pressure line connection	Figure
		Model 166.0 with code 489 (AIRMATIC) Model 292 with code 489 (AIRMATIC)	AR32.22-P-2001-02GZ
8	Seal connections using blind plugs	Record plug	Figure
9	Install in the reverse order
	Check
10	Check AIRmatic for leaks		AR32.22-P-8100GZ
