Remove/Install Outside Temperature Indicator Sensor - AR54.30-P-6341GZ

MODEL 164, 166, 292

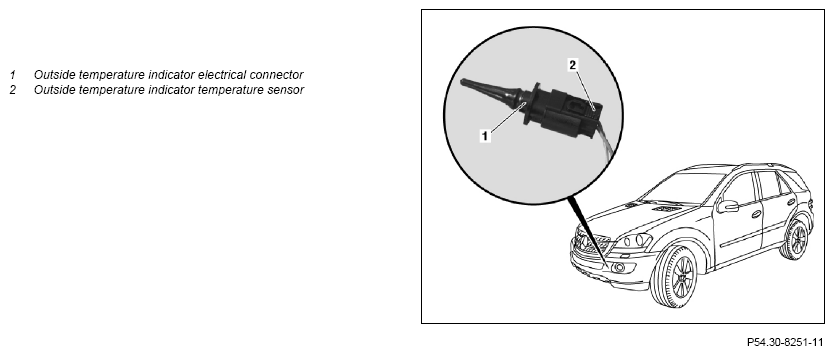

Shown on model 164

	Remove/install
1	Switch off ignition and keep transmitter key at a location beyond transmitter range (at least 2 m)
2.1	Remove radiator grille	Model 164, 166
		Model 164.1 as of model year 2009	AR88.40-P-4001GZA
		Model 164.1 up to model year 2008 Model 164.8 up to model year 2009	AR88.40-P-4001GZ
		Model 164.8 as of model year 2010	AR88.40-P-4001GY
		Model 166.0	AR88.40-P-4001GQ
2.2	Remove front bumper	Model 292
			AR88.20-P-2000GQC
3	Pull outside temperature indicator temperature sensor (2) out of bracket in bumper	Insert the temperature sensor into the bracket in the bumper until it engages.
4	Disconnect outside temperature indicator electrical connector (1) and remove outside temperature indicator temperature sensor (2)
5	Install in the reverse order
6	Perform function test
