Remove/Install Radiator Grille - AR88.40-P-4001GQ
MODEL 166.0, 292
MODEL 166.8
MODIFICATION NOTES
| 28.10.15 | Repair method completely revised. |

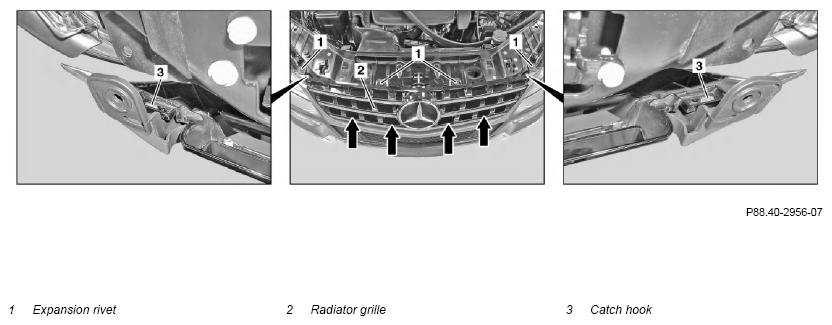

Shown on model 166.0 up to model year 2016 except code 501 (360° camera)

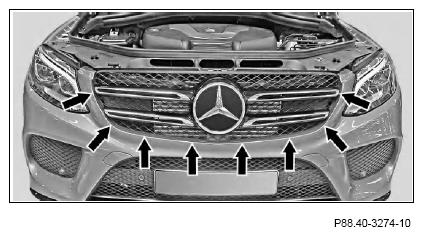

Shown on model 166.0 as of model year 2016 except code 501 (360° camera)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove | |||
| 1 | Switch on ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 2 | Remove cover on radiator support | Figure | |
| 3 | Remove expansion rivets (1) | Figure | |
| 4 | Press catch hooks (3) (arrows) on inside of radiator trim (2) downward with suitable tool and disengage radiator trim (2) | ||
| 5 | Expose electrical connector on 360° camera at front and disconnect | Model 166.0/8, 292 with code 501 (360° camera) | AR54.30-P-3001GQ |
| 6 | Press radiator grille (2) toward rear and remove | ||
| Install | |||
| 7 | Position radiator trim (2) | ||
| 8 | Connect electrical connector to front 360° camera and fasten | Model 166.0/8, 292 with code 501 (360° camera) | AR54.30-P-3001GQ |
| 9 | Press radiator trim (2) toward front and remove | ||
| 10 | Install expansion rivets (1) | ||
| 11 | Install cover in radiator support | ||
| Calibrate | |||
| 12 |
Calibrate camera 360° camera with diagnostic unit | Model 166.0/8, 292 with code 501 (360° camera) | AD00.00-P-2000-04A |
