Remove/Install Tilting/Sliding Roof Panel - AR77.20-P-1000GZ
MODEL 164, 166 with CODE 414 (Power glass tilting/sliding roof)
Shown on model 164.1
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove/install | |||
| 1.1 | Remove tilting/sliding roof bellows | MODEL 164 with CODE 414 (Power glass tilting/sliding roof) |
AR77.20-P-1150GZ |
| 1.2 | Unclip rubber bellows on tilting/sliding roof | MODEL 166 with CODE 414 (Power glass tilting/sliding roof) |
|
| 2 | Close tilting/sliding roof | ||
| 3 | Remove bolts (2) | ||

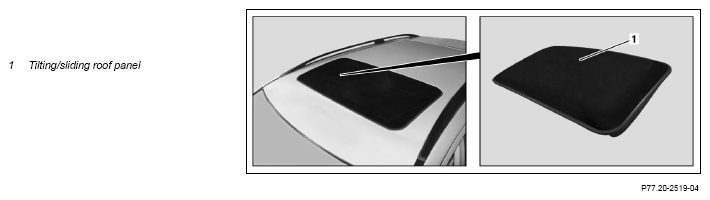

| 4 | Remove tilting/sliding roof panel (1) | ||
| 5 | Install in the reverse order | ||
| 6 | Adjust tilting/sliding roof panel | AR77.20-P-1100GZ |
