Remove/Install Spare Tire Well Panel - AR68.30-P-4620GQ

MODEL 166

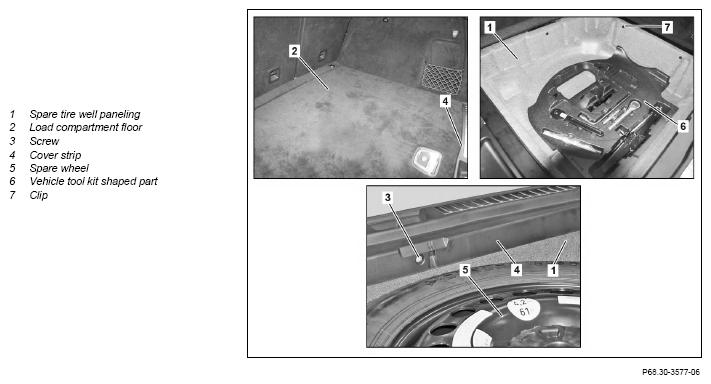

Shown on model 166.024 with code 690 (emergency spare tire), without code 489 (AIRMATIC (air suspension with level adjustment and adaptive damping system, ADS)

	Remove/install
1.1	Remove load compartment floor (2)	MODEL 166.0
1.2	Lift load compartment floor (2)	MODEL 166.8
2	Remove AIRmatic central memory	MODEL 166.0 with CODE 489 (Airmatic (air suspension with level adjustment and adaptive damping system ADS))	AR32.22-P-2017GQ
3	Remove spare tire (5)	MODEL 166 with CODE 690 (Collapsible spare wheel)
4	Unscrew bolt (3) and remove cover strip (4)	Model 166.8 unscrew with two bolts (3).
5	Remove vehicle tool kit shaped part (6)
6	Pry out clips (7) from spare wheel well paneling (1)
7	Remove spare tire well trim (1)	: Ensure that spare wheel well (1) is routed correctly.
8	Install in the reverse order
