Remove/Install Fender Liner In Rear Fender - AR88.10-P-1400GQ

MODEL 166, 292

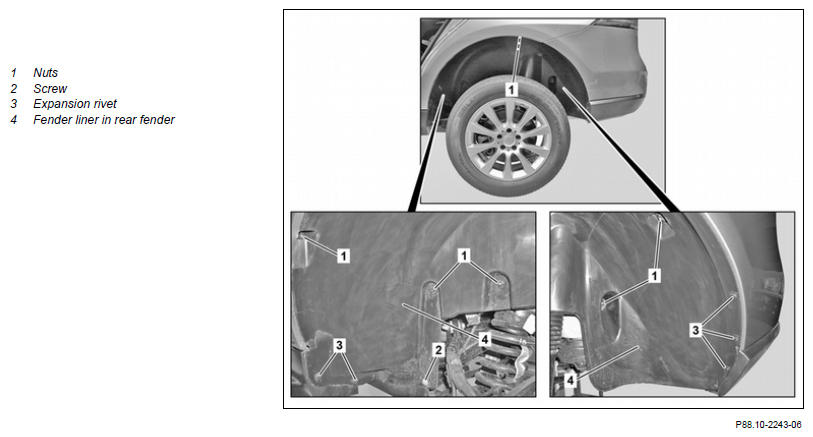

Shown on model 166

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Remove/install
1	Lift vehicle with vehicle lift		AR00.60-P-1000GZ
2.1	Unscrew nuts (1)	Model 166
2.2	Unscrew the nuts	Model 292
3	Unscrew bolt (2)
4.1	Remove expansion rivets (3)	Model 166 Clip remover	Figure
4.2	Unscrew bolts	Model 292
5	Remove fender liner in rear fender (4) from rear fender	: Ensure that fender liner is seated correctly in rear fender (4). Long wedge	Figure
6	Install in the reverse order

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
