Remove/Install Automatic Transmission - AR27.10-P-0005LVH

Transmission 724.2 in model 253 with engine 274.9

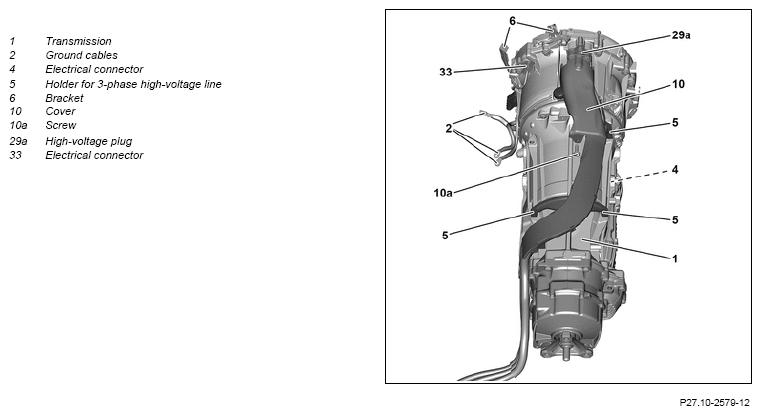

G12817393Courtesy of MERCEDES-BENZ USA

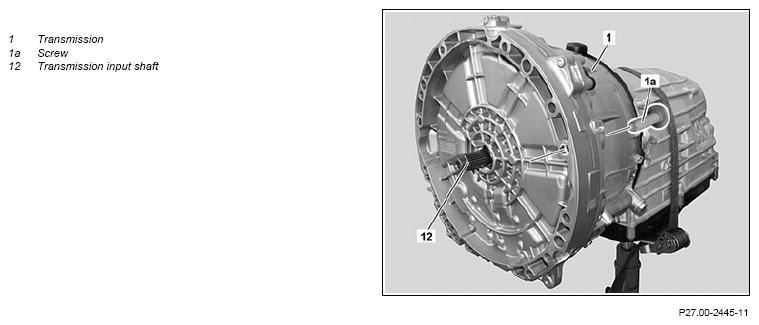

G12817394Courtesy of MERCEDES-BENZ USA
WARNING Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
  Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. AS00.00-Z-0017-01A
  Risk of death  when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. AS00.00-Z-0035-01A
  Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
  General information on handling vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system   AH00.00-Z-0300-01A
  Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
  Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
  Notes on battery   AH54.10-P-0001-01A
  Notes on automatic transmission   AH27.19-P-0001-01NKB
REMOVINGINSTALLING Remove/install
1 Move selector lever to position N
2 Release parking brake
3 Unclip engine air intake duct from front crossmember
4 Perform disable for the high-voltage on-board electrical system Model 253.954 with engine 274.9 with transmission 724.2 AR54.10-P-1150LVH
5 Detach ground line of on-board electrical system battery   AR54.10-P-0003LW
6 Secure vehicle on vehicle lift   AR00.60-P-0100CW
7 Remove center engine compartment paneling and rear engine compartment paneling with bracket   AR61.20-P-1105LW
8 Detach ground lines (2) from transmission (1) TORQUE SPECIFICATION Bolt, ground line to transmission housing *BA27.10-P-1028-04G
9 Unlock and separate electrical connection (33) at electrical machine temperature sensor and create access to line
10 Remove exhaust system center   AR49.10-P-7283RF
11 Remove heat shield   AR27.40-P-0700-01LF
12 Unlock electrical connector (4) at electrohydraulic controller unit, disconnect and unclip electrical line from transmission (1)
13 Detach oil lines from transmission (1) and oil pan, and set aside   AR27.55-P-0600LWH
14 Detach drive shaft from front axle transmission and secure on transmission   AR41.10-P-0070LW
15 Remove lower engine cross member from under floor   AR22.10-P-4360LWB
  Notes on bolted connections with self tapping screws   AH00.00-P-0007-01SF
    NOTES Never use impact wrench or compressed air tools for screwing in or unscrewing the bolts! Otherwise the threads can get damaged.
16 Lash down transmission (1)
17 Remove center of heat shield
18 Unclip holder for 3-phase high-voltage line (5) at 3 points
19 Detach drive shaft flexible coupling from the transmission   AR41.10-P-0040-01LW
REFER TO SHOP-MADE TOOLS Drift for releasing the fitted sleeves in the flexible couplings   WF58.50-P-4110-01A
    TORQUE SPECIFICATION Flex disk or joint flange at transmission/rear axle differential or propeller shaft *BA41.10-P-1001-01L
    SPECIAL TOOL Counterholder Fig 1
20 Carefully lower transmission (1) slightly
21 Remove bolt (10a) and remove cover (10) TORQUE SPECIFICATION Bolt, hoop guard to transmission *BA08.10-P-1002-01F
22 Unclip starter wiring harness from holder (6) and place to one side
23 Detach high-voltage plug (29a) of 3-phase high-voltage lines from electrical machine and place at right, next to the transmission (1) NOTES Cover up high voltage plug (29) and handle carefully.
Otherwise the high voltage on-board electrical system may be damaged.
IMPORTANT The bolt for the high-voltage connector (29a) acts as an extraction and insertion aid, and it is integrated into the high-voltage connector (29a).

    TORQUE SPECIFICATION Bolt, 3-phase high-voltage line to electrical machine housing *BA08.10-P-1003-01F
24 Detach starter at transmission (1) and place to one side   AR15.30-P-7100LWA
    NOTES Secure starter against falling. Damage will otherwise occur.
25 Unscrew bolts (1a) and remove transmission (1) from below INSTALLATION IMPORTANT Apply some anticorrosion grease to the collar and gearing of the transmission input shaft (12).
    TORQUE SPECIFICATION Bolt/nut, transmission to engine *BA27.10-P-1001-04G
    Anticorrosion grease 40 g/DB supply specification 6834.00 *BR00.45-Z-1006-06A
26 Install in the reverse order
27 Perform transmission adaptation using diagnostic system After replacing the transmission (1) or the electrical machine rotor position sensor or the electrical machine
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-04B
INSPECT Check
28 Check oil level in transmission (1) and correct   AR27.00-P-0270EH
WARNING Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
29 Test run engine and check transmission (1) for leaktightness and proper operation Electric motor
ELECTRIC MOTOR

Number Designation Model 253 (except 253.992/993) with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in))
BA08.10-P-1002-01F Bolt, hoop guard to transmission Nm 15
ELECTRIC MOTOR

Number Designation Model 253 (except 253.992/993) with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in))
BA08.10-P-1003-01F Bolt, 3-phase high-voltage line to electrical machine housing Nm 12
AUTOMATIC TRANSMISSION COMPLETE

Number Designation Transmission 724.2
BA27.10-P-1001-04G Bolt/nut, transmission to engine Nm 39
AUTOMATIC TRANSMISSION COMPLETE

Number Designation Transmission 724.2
BA27.10-P-1028-04G Bolt, ground line to transmission housing Nm 20
PROPELLER SHAFT

Number Designation Model 253
BA41.10-P-1001-01L Flex disk or joint flange at transmission/rear axle differential or propeller shaft Self-locking nut Nm -
Direct threaded connection Stage 1 Nm 60
Stage 2 ∠° 90
Fig 1: Identifying Counterholder (176 589 00 40 00)
G11128638Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1006-06A Anticorrosion grease 40 g/DB supply specification 6834.00 A 001 989 37 51 10
