Remove/Install Front Axle Differential Propeller Shaft - AR41.10-P-0070LW
Model 253 with transmission 724.2
Model 253 with transmission 725.0
with code M005 (Vehicles with 4MATIC/all-wheel drive)
Shown on vehicle with VAG 175
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. | AS00.00-Z-0017-01A | |
| Risk of injury. Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | ||
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Remove | |||
| 1 | Put transmission into neutral position. | ||
| 2 | Release parking brake. | ||
| 3.1 | Remove diesel particulate filter. | Model 253 with engine 642 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) Model 253 with engine 651 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) |
|
| Model 253 with engine 642 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) |
AR14.40-P-1000OGW | ||
| Model 253 with engine 651 with transmission 725.0 with code 474 (Diesel particulate filter) with code M005 (Vehicles with 4MATIC/all-wheel drive) |
AR14.40-P-1000OLE | ||
| 3.2 | Remove the catalytic converter. | Model 253 with engine 264 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) Model 253 with engine 274.9 with transmission 724.2 |
|
| Model 253 with engine 274.9 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) |
AR49.10-P-5500LW | ||
| Model 253 with engine 264 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) |
AR49.20-P-0100MRI | ||
| 3.3 | Remove right catalytic converter. | Model 253 with engine 276.8 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) | AR49.10-P-5503MMV |
| 3.4 | Release right catalytic converter. | Model 253 with engine 177 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) | AR49.20-P-0102MNG |
| 4 | Remove heat shield (2). | ||
| 5 | Remove bracket of heat shield (2). | ||
| 6 | Remove right holder of lower rear engine compartment lining. | ||
| 7 | Remove heat shield from transmission. | AR27.40-P-0700-01LF | |

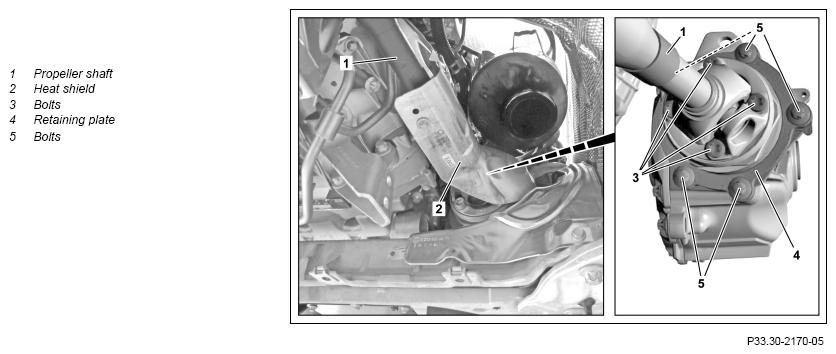

| 8 | Operate service brake and remove bolts (3) | Do not counterhold the propeller shaft (1) at the universal joint. Otherwise the needle roller bearings and seals of the propeller shaft (1) will be damaged. |
|
| 9 | Release wiring harness for crankshaft position sensor/engine oil fill level sensor from oil pan. | Model 253 with engine 177 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) |
|
| 10 | Remove bolts (5) and slide retaining plate (4) onto propeller shaft (1). | With VAG 175 | |
| 11 | Remove holder of lambda sensor plugs behind right catalytic converter. | Model 253 with engine 177 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) |
|
| 12 | Pull propeller shaft (1) out of front axle differential. | ||
| 13 | Pull propeller shaft (1) off splined profile (8) on transfer case (9). | ||
| 14 | Remove propeller shaft (1) downwards. | ||

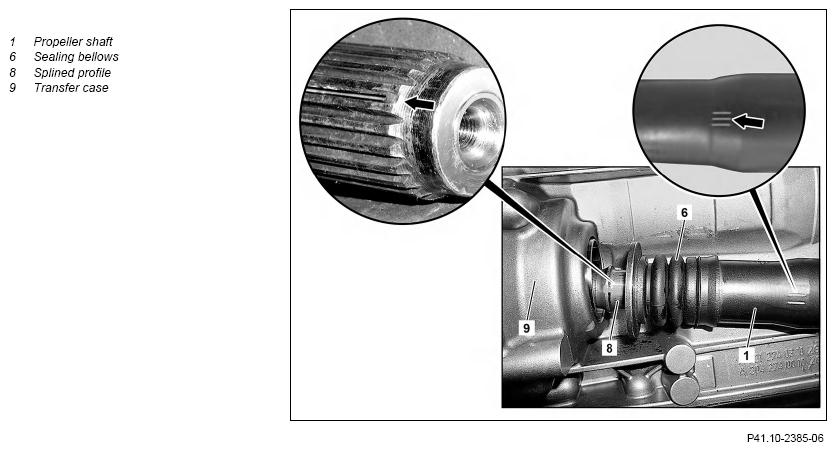

| 15 | Check sealing bellows (6) for damage. | If seal bellows (6) are damaged, ↓ |
|
| Install new seal bellows (6). | AR41.10-P-0070-01A | ||
| Long-life grease (NLGI grade 2) | BB00.40-P-0266-02A | ||
| Install | |||
| 16 | Grease splined profile (8). | Klueber Microlube GNY 202 | *BR00.45-Z-1071-06A |
| 17 | Attach propeller shaft (1) to splined profile (8) of transfer case (9). | ||
| 18 | Attach holder of lambda sensor plugs behind right catalytic converter. | Model 253 with engine 177 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) |
|
| *BA00.10-P-1002-01A | |||
| 19 | Position propeller shaft (1) on front axle differential. | ||
| 20 | Position retaining plate (4) onto front axle differential and screw in new bolts (5). | With VAG 175 | |
| *BA33.30-P-1004-03G | |||
| 21 | Attach wiring harness for crankshaft position sensor/engine oil fill level sensor to oil pan. | Model 253 with engine 177 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) |
|
| 22 | Operate service brake and screw in new bolts (3). | Do not counterhold the propeller shaft (1) at the universal joint. Otherwise the needle roller bearings and seals of the propeller shaft (1) will be damaged. |
|
| *BA33.30-P-1012-03G | |||
| 23 | Install heat shield on transmission. | AR27.40-P-0700-01LF | |
| 24 | Install right holder of lower rear engine compartment lining. | ||
| 25 | Install bracket of heat shield (2). | *BA33.30-P-1010-03G | |
| 26 | Install heat shield (2). | *BA33.30-P-1009-03G | |
| 27.1 |
Fasten right catalytic converter. |
Model 253 with engine 177 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) |
AR49.20-P-0102MNG |
| 27.2 | Install right catalytic converter. | Model 253 with engine 276.8 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) |
AR49.10-P-5503MMV |
| 27.3 | Install catalytic converter. | Model 253 with engine 264 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) Model 253 with engine 274.9 with transmission 724.2 |
|
| Model 253 with engine 274.9 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) |
AR49.10-P-5500LW | ||
| Model 253 with engine 264 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) |
AR49.20-P-0100MRI | ||
| 27.4 | Install diesel particulate filter. | Model 253 with engine 642 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) Model 253 with engine 651 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) |
|
| Model 253 with engine 642 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) |
AR14.40-P-1000OGW | ||
| Model 253 with engine 651 with transmission 725.0 with code 474 (Diesel particulate filter) with code M005 (Vehicles with 4MATIC/all-wheel drive) |
AR14.40-P-1000OLE |
HEADLESS SCREWS: BOLTS AND NUTS, COARSE-PITCH THREAD
| Number | Designation | Model all (4xWD, CAR, smart) | |||
|---|---|---|---|---|---|
| BA00.10-P-1002-01A | M6 | 8.8 | Galvanized | Nm | 9 |
| Phosphated | Nm | 9 | |||
| 10.9 | Galvanized | Nm | 13 | ||
| Phosphated | Nm | 12 | |||
| 12.9 | Galvanized | Nm | 16 | ||
| Phosphated | Nm | 14 | |||
FRONT AXLE GEAR
| Number | Designation | Model 253 | |
|---|---|---|---|
| BA33.30-P-1004-03G | Collar bolt, retaining plate to front axle differential | Nm | 55 |
FRONT AXLE GEAR
| Number | Designation | Model 253 | |
|---|---|---|---|
| BA33.30-P-1009-03G | Collar bolt, heat shield to holder of heat shield/retaining plate | Nm | 8 |
FRONT AXLE GEAR
| Number | Designation | Model 253 | |
|---|---|---|---|
| BA33.30-P-1010-03G | Collar bolt, holder for heat shield to transmission/holder for exhaust system | Nm | 11 |
FRONT AXLE GEAR
| Number | Designation | Model 253 | ||
|---|---|---|---|---|
| BA33.30-P-1012-03G | Screw/bolt, propeller shaft to front axle gear | Stage 1 | Nm | 45 |
| Stage 2 | ∠° | 95 | ||
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1071-06A | Klueber Microlube GNY 202 | A 001 989 44 51 10 |
