Remove/Install Transfer Case Temperature Sensor - AR28.19-P-1007MNG
Transmission 725.09 in model 253 with engine 177 with code M005 (4MATIC)
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 |
Drain transmission oil from transfer case (1) Transfer case - oil change |
AP28.00-P-2801B | |
| 2 | Release and disconnect electrical connector from transmission oil temperature sensor (B91) | ||
| 3 | Unscrew transmission oil (B91) and seal opening with suitable plug | *BA28.10-P-1012-01G | |

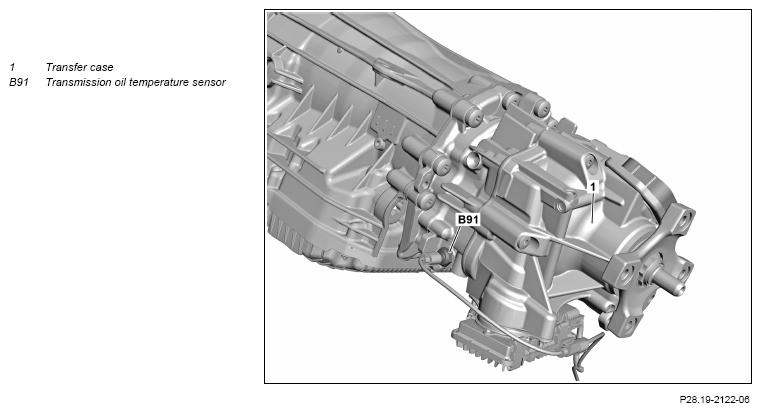

| Fig 1 | |||
| 4 | Install in the reverse order |
COMPLETE TRANSFER CASE
| Number | Designation | Model 205 213 217 218 222 238 253, 257 with transmission 725 0 with code M005 (4MATIC) | |
|---|---|---|---|
| BA28.10-P-1012-01G | Temperature sensor to transfer case | Nm | 30 |
