Transfer Case - oil change - AP28.00-P-2801B
Model 213, 217, 222 with transmission 725.09 with code M005 (4MATIC)
Model 253 with transmission 725.096 with code M005 (4MATIC)
MODIFICATION NOTES
| 20.12.2017 | Specifications for Operating Fluids updated |

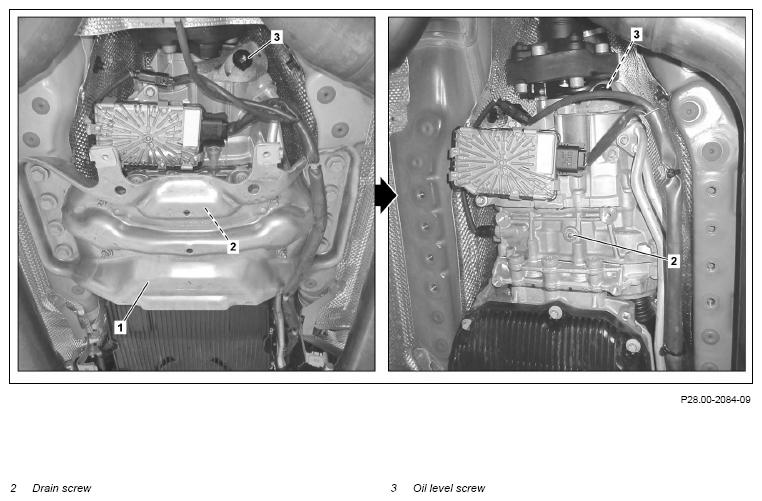

Shown on model 213.088

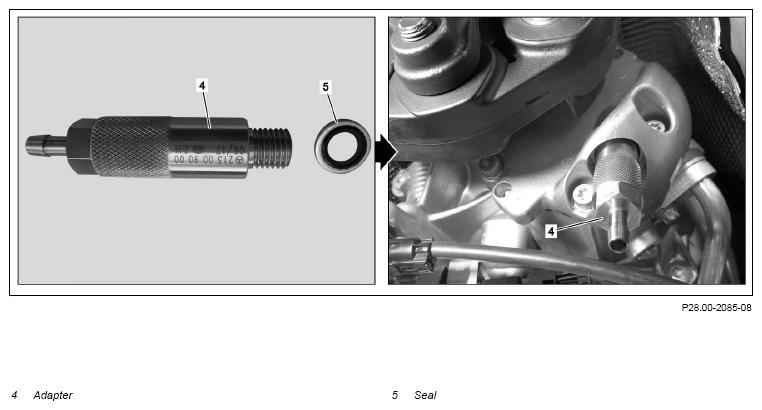

Adapter (4) shown on transfer case in model 213.088
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Remove | |||
| 1 | Remove rear engine mount | Model 213, 217, 222 with transmission 725.09 with code M005 (4MATIC) Model 253 with transmission 725.096 with code M005 (4MATIC) |
|
| Model 213 with engine 177 with transmission 725.09 with code M005 (4MATIC) | AR22.10-P-1160MNE | ||
| Model 217, 222 with engine 177 with transmission 725.09 with code M005 (4MATIC) | AR22.10-P-1160MNM | ||
| Model 253 with engine 177 with transmission 725.096 with code M005 (4MATIC) | AR22.10-P-1160MNG | ||
| Clean | |||
| 2 | Clean area around drain screw (2), crash stop plug and oil level screw (3) | ||
| Remove | |||
| 3 | Unscrew oil level screw (3) with crash stop plug from transfer case | Dispose of old oil level screw (3). Otherwise, this may lead to leakage and consequential damage. |
|
| Check | |||
| 4 | Check crash stop plug for damage and wear | If there is a problem ↓ Replace crash stop plug. |
|
| Draining | |||
| 5 | Unscrew drain screw (2) on transfer case and drain oil | Collect escaping oil in a suitable container. Damage can otherwise occur. Dispose of old drain screw (2). Otherwise, this may lead to leakage and consequential damage. |
|
| Clean | |||
| 6 | Clean threaded hole of drain screw (2) in transfer case | ||
| Install | |||
| 7 | Screw new drain screw (2) into transfer case | Replace drain screw (2) each time it is removed. Otherwise, this may lead to leakage and consequential damage. |
|
| *BA28.10-P-1003-01G | |||
| Install | |||
| 8 | Screw the adapter (4) with the sealing ring (5) into the threaded hole of the oil level screw (3) | Fig 2 | |
| Filling | |||
| 9 | Add specified oil filling capacity to hand | *BF28.10-P-1001-01F | |
| Fig 1 | |||
| 10 | Connect hand pump to adapter (4) | Fig 1 | |
| Fig 2 | |||
| 11 | Fill transfer case | *BF28.10-P-1001-01F | |
| Fig 1 | |||
| 12 | Disconnect hand pump from adapter (4) | Drain off excess oil. Damage can otherwise occur. |
|
| Fig 1 | |||
| Fig 2 | |||
| If less than 50 ml of oil flows out of the transfer case. ↓ Fill 100 ml into hand pump and repeat operation step 11. If more than 50 ml of oil flows out of the transfer case. ↓ Transfer case is sufficiently filled, continue with operation step 13. |
|||
| Remove | |||
| 13 | Unscrew the adapter (4) with the sealing ring (5) from the threaded hole of the oil level screw (3) | Fig 2 | |
| Clean | |||
| 14 | Clean threaded hole of oil level screw (3) in transfer case | ||
| Install | |||
| 15 | Tighten new oil level screw (3) on transfer case | Replace oil level screw (3) each time it is unscrewed. Otherwise, this may lead to leakage and consequential damage. |
|
| *BA28.10-P-1007-01G | |||
| 16 | Fit crash stop plug over the oil level screw (3) on the transfer case | ||
| 17 | Install rear engine mount | Model 213, 217, 222 with transmission 725.09 with code M005 (4MATIC) Model 253 with transmission 725.096 with code M005 (4MATIC) |
|
| Model 213 with engine 177 with transmission 725.09 with code M005 (4MATIC) | AR22.10-P-1160MNE | ||
| Model 217, 222 with engine 177 with transmission 725.09 with code M005 (4MATIC) | AR22.10-P-1160MNM | ||
| Model 253 with engine 177 with transmission 725.096 with code M005 (4MATIC) | AR22.10-P-1160MNG | ||
| Reset learned values | |||
| 18 |
Reset learned values in transfer box control unit with vehicle diagnosis system | AD00.00-P-2000-04B |
COMPLETE TRANSFER CASE
| Number | Designation | Model 205, 213, 217, 218, 222, 238, 253, 257, 290 with transmission 725.0 with code M005 (4MATIC) | |
|---|---|---|---|
| BA28.10-P-1003-01G | Drain screw to transfer case | Nm | 25 |
COMPLETE TRANSFER CASE
| Number | Designation | Model 205, 213, 217, 218, 222, 238, 253, 257, 290 with transmission 725.0 with code M005 (4MATIC) | |
|---|---|---|---|
| BA28.10-P-1007-01G | Oil level sight glass to transfer case | Nm | 11 |
COMPLETE TRANSFER CASE
| Number | Designation | Model 167, 205, 213, 217, 218, 222, 238, 253, 257, 290 with transmission 725.0 | ||
|---|---|---|---|---|
| BF28.10-P-1001-01F | Transfer case oil | Filling capacity | Liter | 0, 65 |
| Specification | BB00.40-P-0236-15A | |||
