Remove/Install Transfer Case Control Unit - AR28.19-P-1003MNG
Transmission 725.09 in model 253 with engine 177 with code M005 (4MATIC)
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 |
Drain transmission oil from transfer case (4) Transfer case - oil change |
AP28.00-P-2801B | |

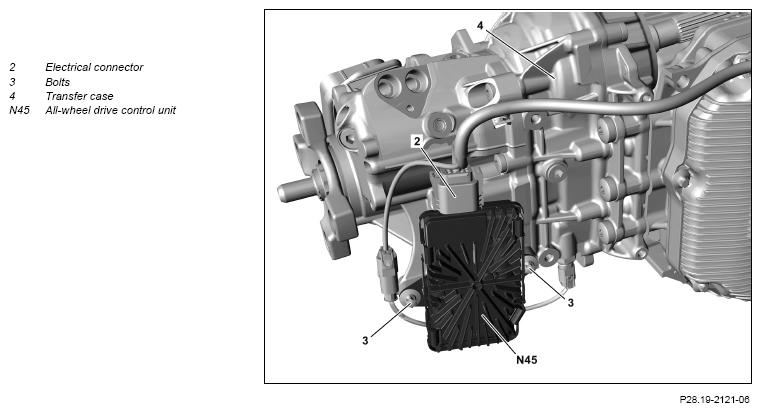

| 2 | Release and disconnect electrical connection (2) | ||
| 3 | Remove screws (3) | *BA28.10-P-1010-01G | |
| 4 | Remove all-wheel drive control unit (N45) downwards | Damage will otherwise occur. |
|
| 5 | Install in the reverse order | ||
| 6 | Commission the all-wheel drive control unit (N45) | When replacing the all-wheel drive control unit (N45). | |
| AD00.00-P-2000-04B | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 7 | Perform engine test run, while doing so check transfer case (4) for proper operation and leak tightness |
COMPLETE TRANSFER CASE
| Number | Designation | Model 205, 213, 217, 218, 222, 238, 253, 257 with transmission 725.0 with code M005 (4MATIC) | |
|---|---|---|---|
| BA28.10-P-1010-01G | Bolt, control unit to transfer case | Nm | 24 |
