Remove/Install Rear Engine Mount - AR22.10-P-1160MNG
Engine 177 in model 253
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. | AS00.00-Z-0017-01A | |
| Notes on bolted connections with self tapping screws | AH00.00-P-0007-01SF | ||
| Remove/install | |||
| 1 | Remove engine carrier | AR22.10-P-4360MNG | |

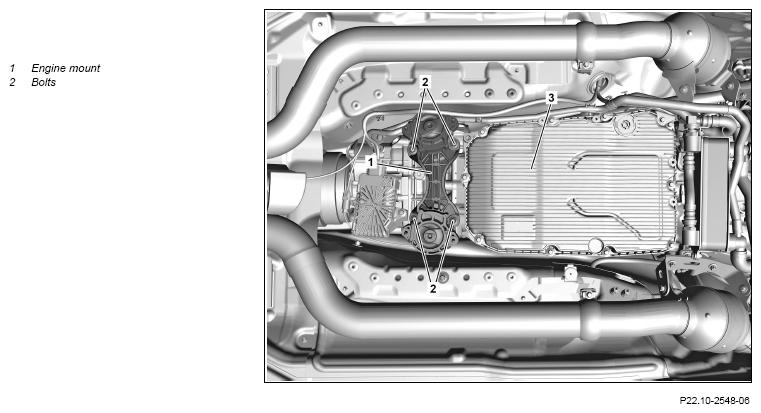

| 2 | Remove screws (2) and remove engine mount (1) in downward direction | *BA22.10-P-1003-03M | |
| 3 | Install in the reverse order |
ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Model 253.388/389/988/989 | ||
|---|---|---|---|---|
| BA22.10-P-1003-03M | Bolt, rear engine mount to holder/transmission/engine carrier | M8 | Nm | 30 |
| M10 | Nm | - | ||
