Remove/Install Oil Circuit Return Line Of Left Turbocharger - AR09.40-P-6041MNG
Engine 177 in model 253
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. | AS00.00-Z-0017-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Remove left ATL (1) | AR09.40-P-6026MNG | |
| 2 | Clean area around return line (2) | Assembly cleaner | *BR00.45-Z-1028-04A |
| 3 | Remove screw (4) | *BA09.40-P-1003-01ZA | |
| 4 | Remove screws (3) | *BA09.40-P-1003-01ZA | |
| 5 | Remove return line (2) at left exhaust gas turbocharger (1) and seal openings with suitable stop plugs | ||

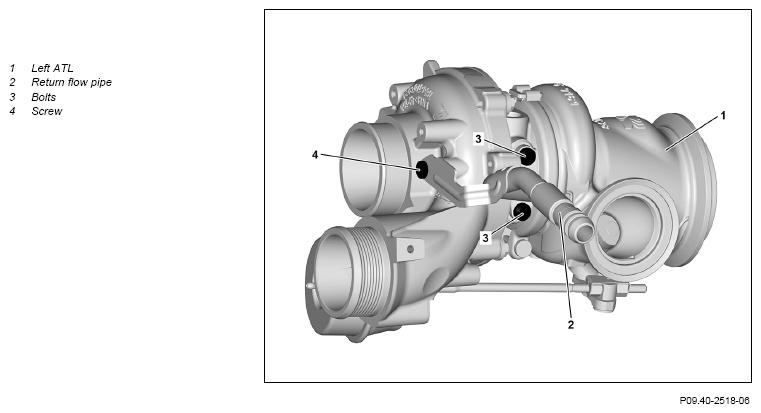

| Fig 1 | |||
| 6 | Install in the reverse order |
TURBOCHARGER
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA09.40-P-1003-01ZA | Bolt, oil return line to turbocharger/crankcase | Nm | 9 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1028-04A | Assembly cleaner | Adolf Wurth GmbH & Co. KG |
