Retrofit Drive Kit Plus for Apple iPhone - AZ82.60-P-0019NKX

MODEL 156.9 (except 156.952) with CODE 510 (Audio 20 with CD changer)

MODEL 156.9 (except 156.952) with CODE 523 (MB Audio 20 radio)

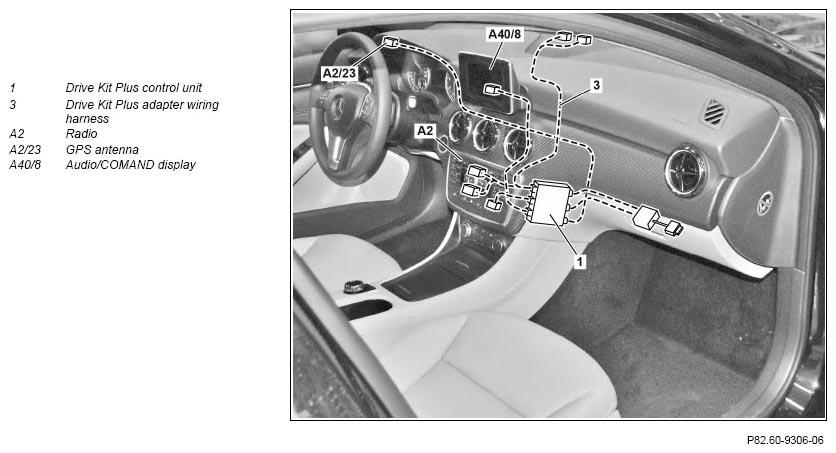

Routing diagram, Drive Kit Plus for the Apple iPhone 4, shown on left-hand drive vehicle

Fig 1: Drive Kit Plus For Apple Iphone 4 Routing Diagram - Shown On Left-Hand Drive Vehicle

Courtesy of MERCEDES-BENZ USA

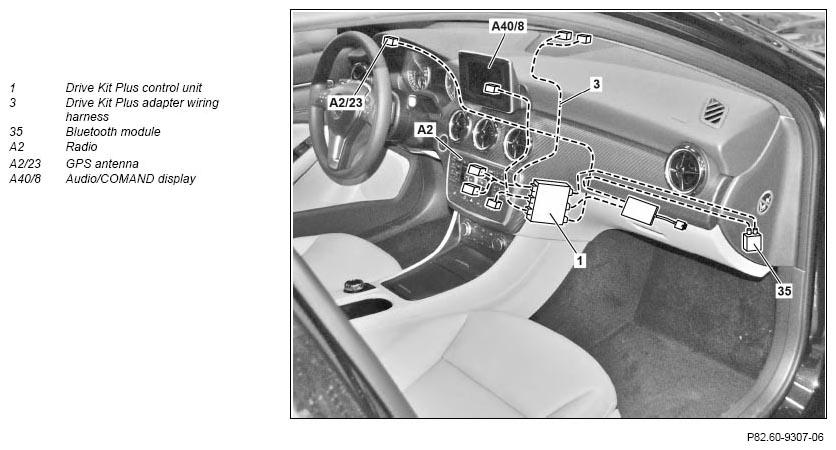

Routing diagram, Drive Kit Plus for the Apple iPhone 5, shown on left-hand drive vehicle

Fig 2: Drive Kit Plus For Apple Iphone 5 Routing Diagram - Shown On Left-Hand Drive Vehicle

Courtesy of MERCEDES-BENZ USA

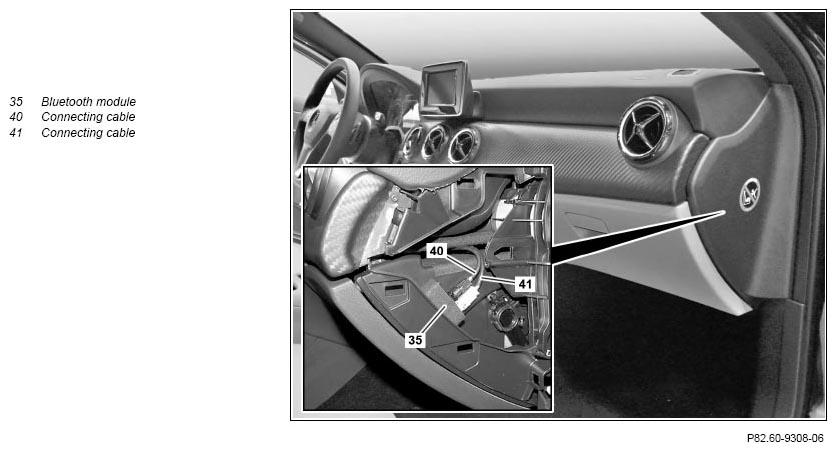

Installation location of Bluetooth module (35) for Drive Kit Plus for the Apple iPhone 5, shown on left-hand drive vehicle

Fig 3: Bluetooth Module (35) For Drive Kit Plus For Apple Iphone 5 Installation Position - Shown On Left-Hand Drive Vehicle

Courtesy of MERCEDES-BENZ USA

	Notes on avoiding damage to optical fibers during repair work		AH82.60-P-0001-05AK
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Move front passenger seat toward rear
2	Remove glove compartment
			AR68.10-P-1400NKA
3	Remove radio (A2)
			AR82.60-P-7502NKB
4	Remove Audio/COMAND display (A408)
			AR82.60-P-7722NKB
5	Remove instrument cluster
			AR54.30-P-6015NKB
6	Remove covers on center console With CODE 518 (Media Interface)
			AR68.20-P-2350NKB
		Only remove front and rear center console cover.
	Install
7	Prepare vehicle for retrofitting of Drive Kit Plus for the Apple iPhone	When retrofitting the Drive Kit Plus for the Apple iPhone 5.
			AZ82.60-P-0019-08NKX
8	Retrofit Drive Kit Plus adapter wiring harness (3)		AZ82.60-P-0019-01NKX
		Long wedge	Figure
9	Retrofit Drive Kit Plus low voltage differential signaling (LVDS) wiring harness		AZ82.60-P-0019-04NKX
10	Retrofit GPS antenna (A2/23)		AZ82.60-P-0019-06NKX
11	Retrofit Drive Kit Plus Media Interface adapter line	With CODE 518 (Media Interface)
			AZ82.60-P-0019-05NKX
12	Retrofit Drive Kit Plus connecting wiring harness		AZ82.60-P-0019-02NKX
13	Retrofit Drive Kit Plus control unit (1)		AZ82.60-P-0019-03NKX
14	Install glove compartment with connection line (40), connection line (41) and data line of Drive Kit Plus connecting wiring harness	When retrofitting the Drive Kit Plus for the Apple iPhone 5.
15	Retrofit Bluetooth module (35)	When retrofitting the Drive Kit Plus for the Apple iPhone 5.
			AZ82.60-P-0019-07NKX
16	Install remaining parts
	Update Vehicle Documentation (VeDoc)
17	Attach note "Drive Kit Plus for the Apple iPhone retrofitted as per AZ82.60-P-0019NKX " under field organization texts to DG 68 and DG 82
18	Enter special equipment into the vehicle data card online - CODE "89o"	Ensure here that the third digit is the letter "o" for Oscar.
19	Connect diagnostic system and select vehicle via the vehicle identification number (VIN)
			AD00.00-P-2000-04A
20	Carry out adaptation and redocumentation of the "Drive Kit Plus" control unit	Only with "Car-to-X" XENTRY: "Drive Kit Plus" control unit > Adaptation > Initial startup
21	Perform variant coding with XENTRY using the software calibration number (SCN)	Register Drive Kit Plus for the Apple iPhone with the audio component using SCN coding.
22	Disconnect diagnostic system
			AD00.00-P-2000-04A
23	Install software onto USB stick and flash to Drive Kit Plus control unit via Apple iPhone® update adapter	For instructions see ODUS: Service and Downloads > Further Information > Accessories > Telematics > Drive Kit Plus.
	Check
24	Perform function check of Drive Kit Plus for Apple iPhone	See Owner's Manual.

Fig 4: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
