Remove/install telephone antenna splitter - AR82.70-P-8956NKA

MODEL 156, 176 with CODE 360 (HERMES UMTS) with CODE 386 (Comfort telephony)

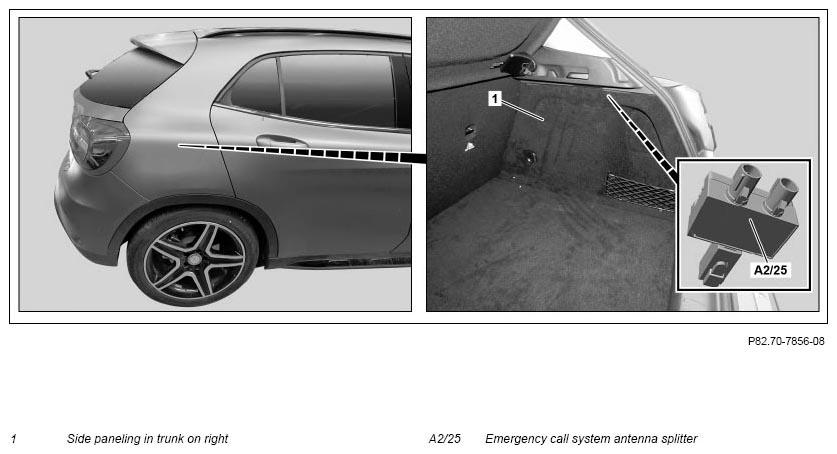

Fig 1: Telephone Antenna Splitter Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Switch off ignition and store transmitter key outside of transmission range (min. 2 m)
2	Remove side paneling in trunk at right (1)	Model 176 with code 360 (HERMES UMTS) with code 386 (Comfort telephony)	AR68.30-P-4800NKA
		Model 156 with code 360 (HERMES UMTS) with code 386 (Comfort telephony)	AR68.30-P-4800NKX
3	Release and disconnect electrical connectors from emergency call system antenna splitter (A2/25)
4	Use suitable tool to unclip and remove emergency call system antenna splitter (A2/25)
5	Install in the reverse order
