Remove/install side paneling in trunk - AR68.30-P-4800NKX

MODEL 156

Shown on left side of vehicle

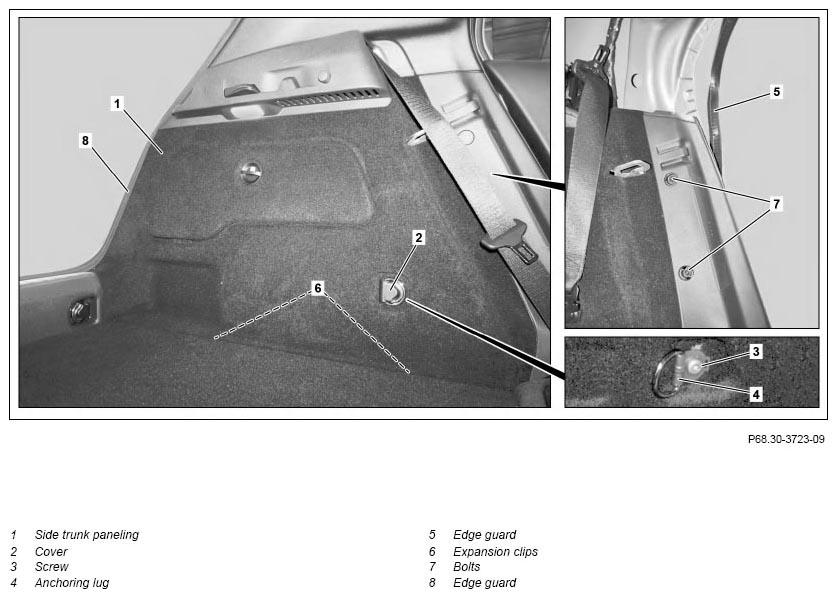

Fig 1: Trunk Side Paneling Remove/Install Components - Shown On Left Side Of Vehicle

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove trim from C-pillar		AR68.30-P-4490NKX
2	Remove trim from rear end center assembly		AR68.30-P-4785NKA
3	Remove fold-down rear backrest		AR91.12-P-1720NKB
4	Detach edge guard (5) in area of paneling (1)	Ensure that the edge guard (5) is properly seated.
5	Unclip caps on bolts (7)
6	Remove screw/bolts (7)
7	Unclip cover (2) from anchoring lug (4)
8	Unscrew bolt (3) and remove anchoring lug (4)
9	Remove expansion clips (6)
10	Unclip and remove molding (1)	Ensure that the edge guard (8) is properly seated.
11	Install in the reverse order
