Remove/install satellite radio control unit - AR82.60-P-7545NKX
MODEL 156 with CODE 536 (SIRIUS satellite radio)
| Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Connect diagnostic system and perform initial startup of Satellite Digital Audio Radio (SDAR) (N87/5) control unit | When replacing the satellite digital audio radio (SDAR) control unit (N87/5). | |
| AD00.00-P-2000-04A | |||
| 2 | Switch off ignition and remove transmitter key from electronic ignition lock control unit | ||
| 3 | Remove trunk side paneling on right | AR68.30-P-4800NKX | |
| 4 | Separate electrical connectors (2) | ||
| 5 | Remove expansion clips (5) | MODEL 156 with CODE 228 (Auxiliary heater) with CODE 386 (Comfort telephony) with CODE 536 (SIRIUS satellite radio) |
|
| 6 | Remove mobile phone and stationary heater radio remote control antenna splitter (A2/53) from bracket (3) and place to one side with lines connected | MODEL 156 with CODE 228 (Auxiliary heater) with CODE 386 (Comfort telephony) with CODE 536 (SIRIUS satellite radio) |
|

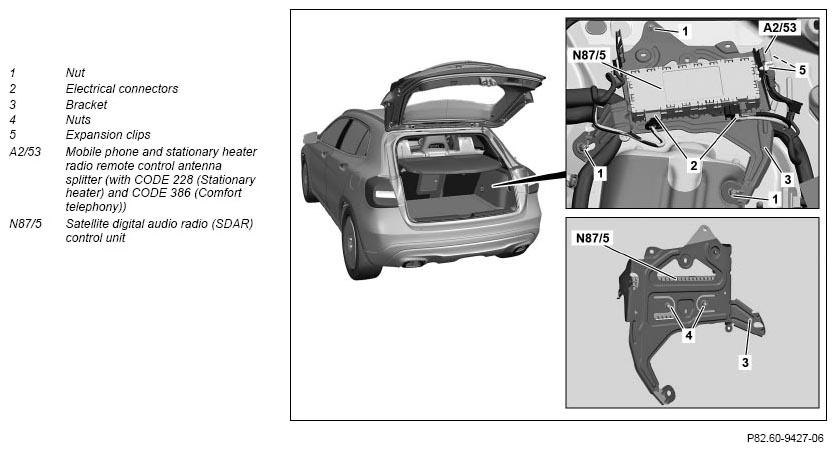

| 7 | Unscrew nuts (1) and remove bracket (3) with the Satellite Digital Audio Radio (SDAR) (N87/5) control unit | ||
| 8 | Unscrew nuts (4) and remove Satellite Digital Audio Radio (SDAR) (N87/5) control unit from bracket (3) | ||
| 9 | Install in the reverse order | ||
| 10 | Perform function test |
