Remove/install center high-mounted stop lamp - AR82.10-P-5375NKT

MODEL 117.9, 156, 176

Shown on model 117.9

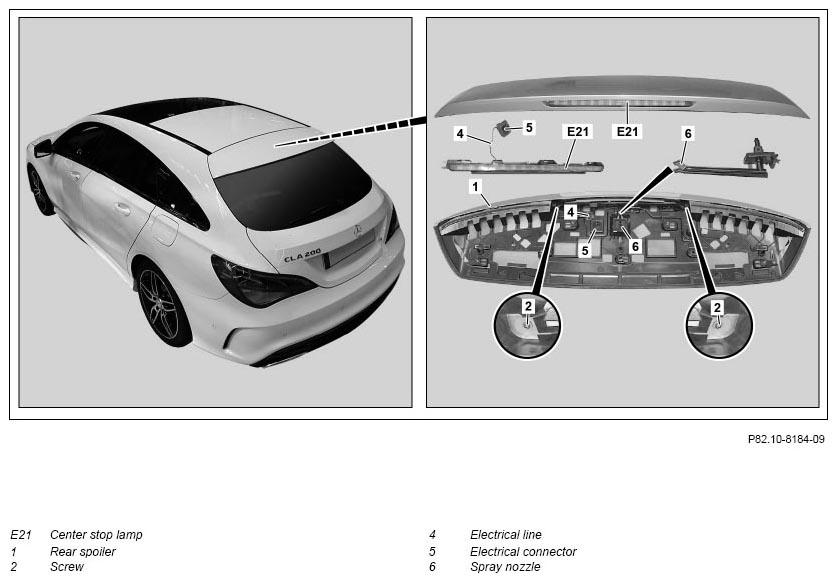

Fig 1: Center High-Mounted Stop Lamp Remove/Install Components - Shown On Model 117.9

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove rear spoiler (1)		AR72.20-P-4000NKT
2	Place down rear spoiler (1) on a suitable base
3	Remove bolts (2)
4	Unclip electrical connector (5)
5	Expose electrical line (4)
6	Unclip center brake lamp (E21) and remove from rear spoiler (1)	Bonding surfaces must be cleaned. If the old part is re-used, the adhesive strips must always be replaced.
		Cleaner	*BR00.45-Z-1025-04A
7	Remove spray nozzle (6) When replacing rear spoiler (1).
8	Install in the reverse order

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1025-04A	Cleaner	A 005 989 19 71
