Removing and installing rear spoiler - AR72.20-P-4000NKT
MODEL 117.9, 156, 176, 242, 246

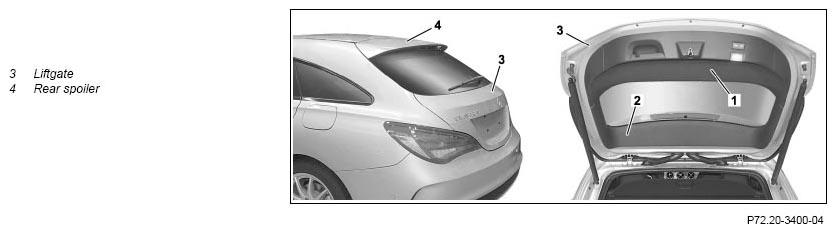

Shown on model 117.9
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1.1 | Remove door trim from liftgate (3) at front | Model 117.9 | |
| AR72.20-P-6445NKC | |||
| 1.2 | Remove lower liftgate trim | Model 156, 176, 242, 246 | |
| AR72.20-P-6617NKA | |||
| 2 | Unclip center liftgate paneling and remove | Model 156, 176, 242, 246 | |
| Fig 3 | |||
| 3 | Unclip upper liftgate paneling and remove | Model 156, 176, 242, 246 | |
| Fig 3 | |||

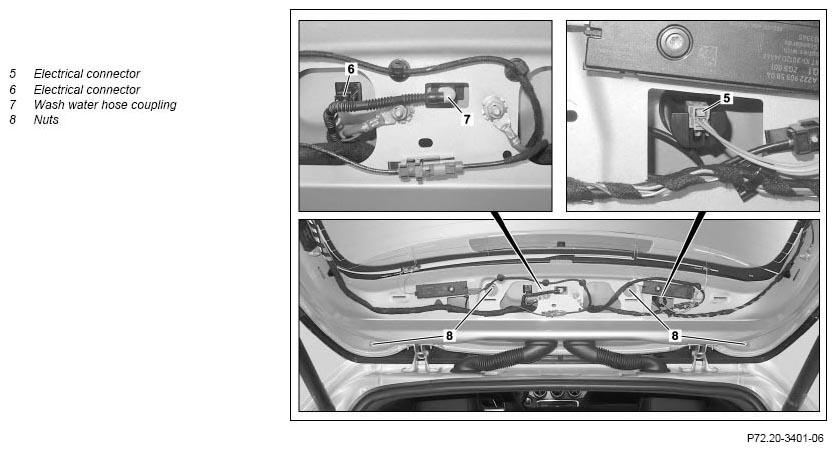

| 4 | Disconnect electrical connections (5, 6) | ||
| 5 | Unlock wash water hose coupling (7) and remove | ||
| 6 | Unscrew nuts (8) | ||
| 7 | Unclip rear spoiler (4) from liftgate (3) and remove | ||
| 8 | Remove additional brake lamp | When replacing rear spoiler (4). | |
| Model 242, 246 | AR82.10-P-5375NKB | ||
| Model 117.9, 156, 176 | AR82.10-P-5375NKT | ||
| 9 | Install in the reverse order |
