Remove/install Digital Audio Broadcasting control unit (DAB) - AR82.60-P-2001NKX
MODEL 156 with CODE 537 (Digital radio (DAB))
| Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||

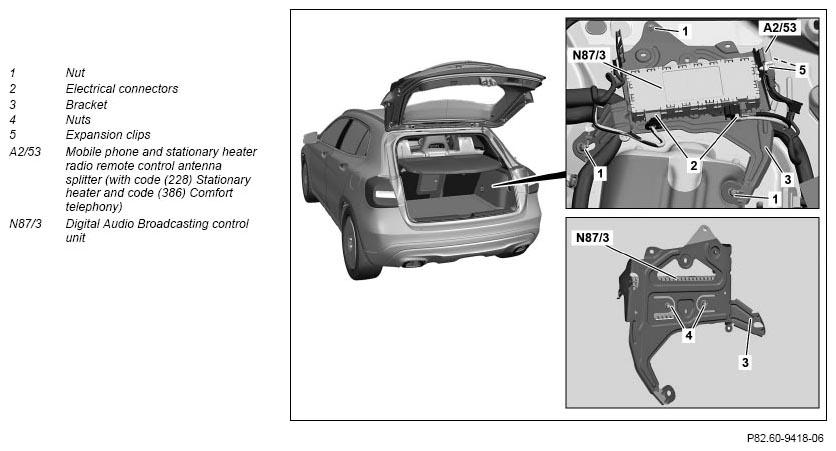

| 1 | Connect diagnostic system and perform initial startup of Digital Audio Broadcasting control unit (N87/3) | When replacing the Digital Audio Broadcasting control unit (N87/3). | |
| AD00.00-P-2000-04A | |||
| 2 | Switch off ignition and remove transmitter key from electronic ignition lock control unit | ||
| 3 | Remove trunk side paneling on right | AR68.30-P-4800NKX | |
| 4 | Separate electrical connectors (2) | ||
| 5 | Remove expansion clips (5) | MODEL 156 with CODE 228 (Auxiliary heater) with CODE 386 (Comfort telephony) with CODE 537 (Digital radio (DAB)) |
|
| 6 | Remove mobile phone and stationary heater radio remote control antenna splitter (A2/53) from bracket (3) and place to one side with lines connected | MODEL 156 with CODE 228 (Auxiliary heater) with CODE 386 (Comfort telephony) with CODE 537 (Digital radio (DAB)) |
|
| 7 | Unscrew nuts (1) and remove bracket (3) with Digital Audio Broadcasting control unit (N87/3) | ||
| 8 | Unscrew nuts (4) and remove Digital Audio Broadcasting control unit (N87/3) from bracket (3) | ||
| 9 | Install in the reverse order | ||
| 10 | Perform function test |
