Perform software update for Drive Kit Plus - AR82.60-P-0020NKX

MODEL 156 (except 156.952) with CODE B56 (Drive Kit Plus for the iPhone® 4/4s)

MODEL 156 (except 156.952) with CODE B62 (Drive Kit Plus for the iPhone® 5s/5c/5)

Shown with Drive Kit Plus for the iPhone® 5

Fig 1: Bluetooth Module, Update Adapter, USB Stick & Connecting Cable - Shown With Drive Kit Plus For Iphone® 5

Courtesy of MERCEDES-BENZ USA

Shown with Drive Kit Plus for the iPhone® 4/4S

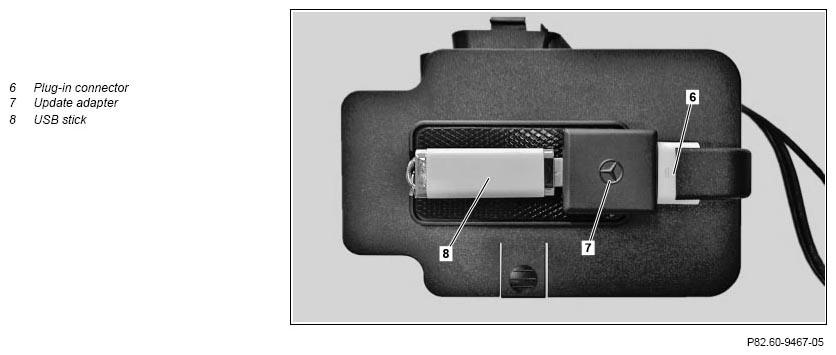

Fig 2: Plug-In Connector, Update Adapter And USB Stick - Shown With Drive Kit Plus For Iphone® 4/4S

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Expose connection line (2) from Bluetooth module (1)	MODEL 156 (except 156.952) with CODE B62 (Drive Kit Plus for the iPhone® 5s/5c/5)
			AR68.20-P-2350NKB
	Software update
2	Disconnect connector (3) from Bluetooth module (1)	MODEL 156 (except 156.952) with CODE B62 (Drive Kit Plus for the iPhone® 5s/5c/5)
3.1	Connect USB stick (5) to update adapter (4) and plug into connector (3)	MODEL 156 (except 156.952) with CODE B62 (Drive Kit Plus for the iPhone® 5s/5c/5) The software update starts automatically and is concluded with the message "Update successful". Obtain software via ODUS: Services & Downloads → Further Information → Accessories → Telematics → Drive Kit Plus → DKP_Software iPhone® 5 update adapter: A2188200187 USB stick: W176 589 00 63 01 (optional)
3.2	Connect USB stick (8) to update adapter (7) and plug into plug connection (6)	MODEL 156 (except 156.952) with CODE B56 (Drive Kit Plus for the iPhone® 4/4s) The software update starts automatically and is concluded with the message "Update successful". Obtain software via ODUS: Services & Downloads → Further Information → Accessories → Telematics → Drive Kit Plus → DKP_Software iPhone® 4/4S update adapter + USB stick: W176 589 00 63 00
4	Switch off ignition
5	Function test
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A
		If it is not possible to switch to the system selection level at the head unit using the system selection button (S110s3) and back to Drive Kit Plus using the "CD" button, ↓ then Image Detection must be activated via control unit adaptations in the Drive Kit Plus control unit (N123/7) using XENTRY.
6	Install in the reverse order
