Remove/install crank window in front door - AR72.10-P-1900NKB

MODEL 156, 176, 242, 246

Shown on MODEL 246

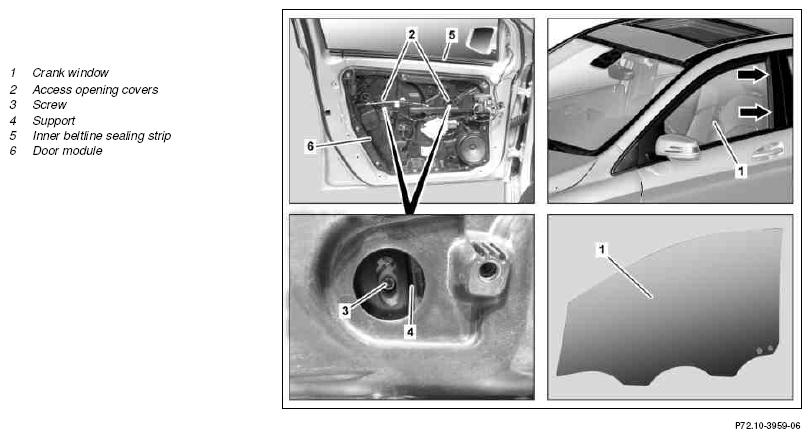

Fig 1: Front Door Crank Window Remove/Install Components - Shown On Model 246

Courtesy of MERCEDES-BENZ USA

	Remove
	Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Risk of injury from contusions to hands if window glass is not secured	Secure window to prevent it from falling down.	AS67.00-Z-0002-01A
1	Remove door lining from left or right front door		AR72.10-P-1000NKB
2	Remove inner belt line sealing strip (5)
3	Remove both assembly opening covers (2) from door module (6)
4	Connect electrical wiring harness on removed door lining to left front door control unit and right front door control unit
5	Open crank window (1) until bolts (3) are accessible through assembly openings in door module (6)
6	Disconnect electrical wiring harness on removed door lining from left front door control unit or right front door control unit
7	Loosen bolts (3) two turns	Do not unscrew bolts (3).
8	Tilt crank window (1) toward rear upward and remove upward from window channel on front door
	Install
9	Insert crank window (1)	Slide crank window (1) down until it makes contact in mounts (4). Simultaneously slide crank window (1) to stop into rear window guide seal (arrows).
10	Tighten screw/bolts (3)
11	Install both assembly opening covers (2) in door module (6)
12	Connect electrical wiring harness on removed door lining to left front door control unit and right front door control unit
13	Roll down crank window (1)
14	Disconnect electrical wiring harness on removed door lining from left front door control unit or right front door control unit
15	Install inner beltline sealing strip (5)	Lubricant, rubber assembly 1 l	*BR00.45-Z-1010-06A
16	Install door lining		AR72.10-P-1000NKB
17	Check for proper function and synchronize power window

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1010-06A	Lubricant, rubber assembly 1 l	A 000 989 03 67
