Remove/install paneling on rear center section - AR68.30-P-4785NKA
MODEL 156, 176

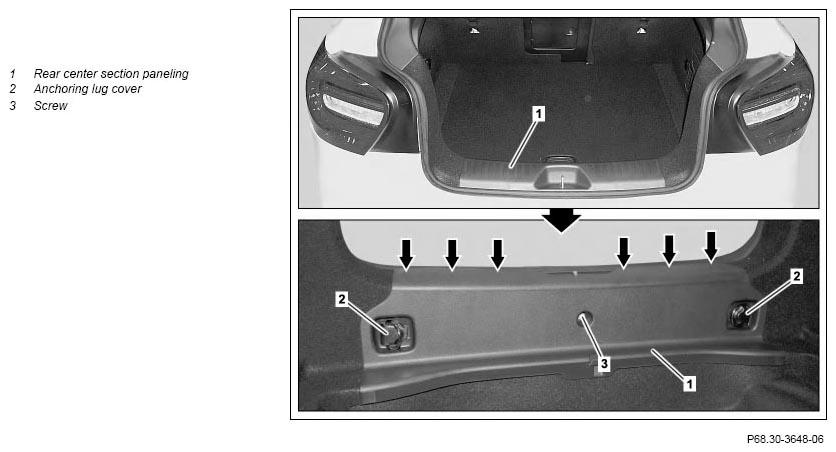

Shown on MODEL 176
| Remove/install | |||
| 1 | Remove load compartment floor from trunk | ||
| 2 | Unscrew bolt (3) | ||
| 3 | Unclip anchoring lug cover (2) and remove | ||
| 4 | Unscrew bolts behind anchoring lug covers (2) and remove anchoring lugs | ||
| 5 | Unclip rear center section paneling (1) in area of retaining clips (arrows) and remove | Fig 2 | |
| 6 | Install in the reverse order |
