Disassemble and assembly joint housing - AR33.20-P-0601GG

MODEL 460, 461 (except 461.331)

MODEL 463 (except 463.270/271) up to model year 2013/facelift 2012

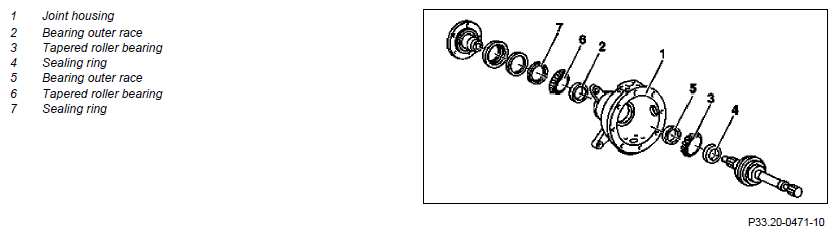

Fig 1: Joint Housing Disassemble/Assemble Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

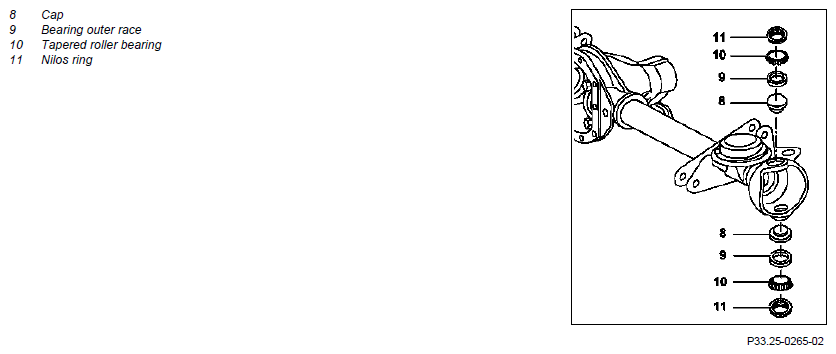

Fig 2: Joint Housing Disassemble/Assemble Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove joint housing (1) with drive shaft		AR33.20-P-0600A
	Disassemble
2	Remove drive shaft		AR33.30-P-0100A
3	Remove front wheel hub		AR33.20-P-0310GG
4	Remove sealing ring (7)
5	Remove bearing outer race (2)		Fig 3
			Figure
6	Remove tapered roller bearing (3) and sealing ring (4)		Fig 5
7	Remove bearing outer race (5)		Fig 3
			Figure
8	Remove end cover (8) and bearing outer races (9)
	Checking
9	Clean parts, check and replace if necessary
	Assemble
10	Install end cover (8) and bearing outer races (9)		Fig 7
			Figure
11	Install bearing outer race (5)		Fig 6
12	Grease bearing (3) well with lubricant and insert in joint housing		*BR00.45-Z-1017-06A
13	Smear periphery of sealing ring (4) with sealing compound and install	Install sealing rings with outer rubber coating without sealing compound.	*BR00.45-Z-1012-01A
			Fig 9
14	Install bearing outer race (2)		Fig 9
15	Smear sealing ring (7) with lubricant and install	Drive in sealing rings flush (max. 0.3 mm lower). Install sealing rings with outer rubber coating without sealing compound.	*BR00.45-Z-1012-01A
			Fig 10
16	Install joint housing with drive shaft		AR33.20-P-0600A
17	Install in the reverse order
