Remove/install front seat - AR91.10-P-1000GW

MODEL 463 (except 463.202) as of model year 2013/model refinement package 2012

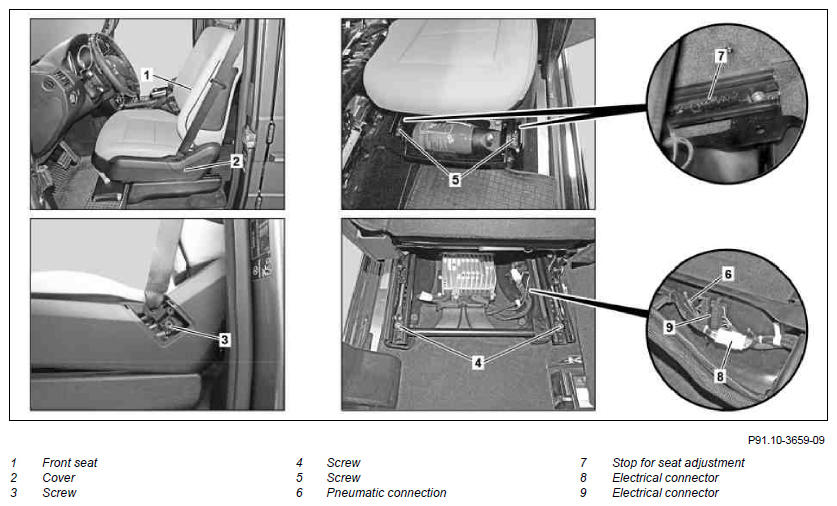

Fig 1: Front Seat Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Position front seat (1) to rear
2	Remove stop for seat adjustment (7).	Leave the front two teeth of the adjustment rail free.
3	Adjust front seat (1) to front
4	Remove covering (2) and remove bolt (3) on belt end fitting		*BA91.40-P-1001-01C
5	Remove bolts (4) on rear seat rail		*BA91.10-P-1001-01E
6	Position front seat (1) to rear
7	Remove bolts (5) on front seat rail		*BA91.10-P-1001-01E
8	Detach ground line from battery		AR54.10-P-0003GW
	Notes on battery		AH54.10-P-0001-01A
9	Carefully tilt front seat (1) toward rear
10	Disconnect electrical connectors (8) and (9)	Disconnect cable tie at seat console. Replace cable ties.
11	Remove pneumatic connection (6).	Vehicles with code (PA1) Seating comfort package
12	Remove front seat (1)	Ensure locking bolt is installed in correct position.
13	Install in the reverse order
14	Read out and erase the fault memory using Star Diagnosis		AD00.00-P-2000-04A
	Checking
15	Perform function test of multicontour seat
