Lift/jack up vehicle with 2-column lifting platform or with supporting arms - AR00.60-P-1001G
MODEL 460, 461 (except 461.227/321/322/323/327/329/345/346/392/405/458), 463
Shown on model 463.249 with 2850 mm wheelbase

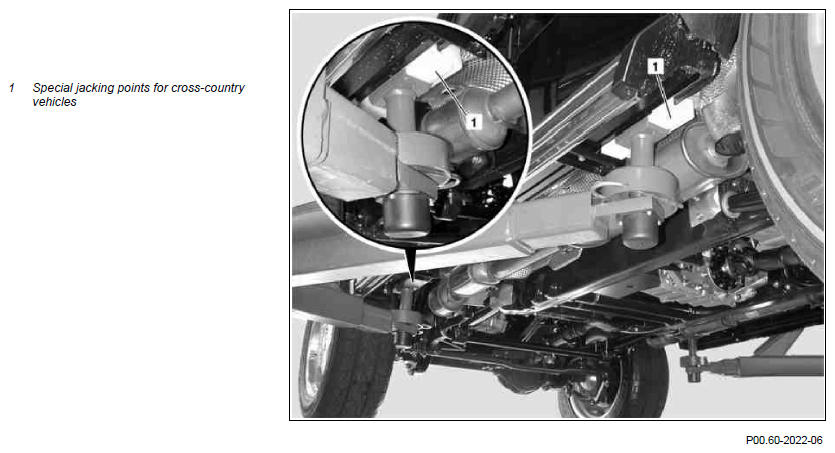

Fig 1: Lifting Up Vehicle With 2-Column Lifting Platform With Supporting Arms - Shown On Model 463.249 With 2850 mm Wheelbase
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Remove side running boards if necessary | MODEL 463.202/204/206/207/208/209/220/221/224/225/227/228/230/231/232/233/240/241/300/304/307/308/320/321/324/325/327/328/330/331 with CODE T84 (Left and right stainless steel running boards) |
AR88.30-P-2400A |
| MODEL 463.202/236/346 up to model year 2013 with CODE T84 (Stainless Steel Side Running Boards) MODEL 463.222/243/244/245/246/247/248/249/250/254/270/271/303/306/309/322/323/332/333/336/340/341 with CODE T84 (Left and right stainless steel running boards) without CODE PA3 (Exterior Stainless Steel package) MODEL 463.242 |
AR88.30-P-2400GR | ||
| MODEL 463 (except 463.242) as of model year 2013 with CODE PA3 (Exterior Stainless Steel package) without CODE T84 (Left and right stainless steel running boards) |
AR88.30-P-2400GW | ||
| 2 | Lift/jack up vehicle | Lift vehicle using special supports for cross- country vehicles (1) at provided vehicle lift support points. Otherwise the vehicle may tip from the vehicle lift. On vehicles with code (979) Special protection version and fire extinguishing system, make sure that the distributor lines are not damaged. Otherwise a malfunction of the fire extinguishing system may occur. |
