Remove/install side step - AR88.30-P-2400GW

MODEL 463 (except 463.242) as of model year 2013 with CODE PA3 (Exterior Stainless Steel package) without CODE T84 (Left and right stainless steel running boards)

Shown on right front vehicle

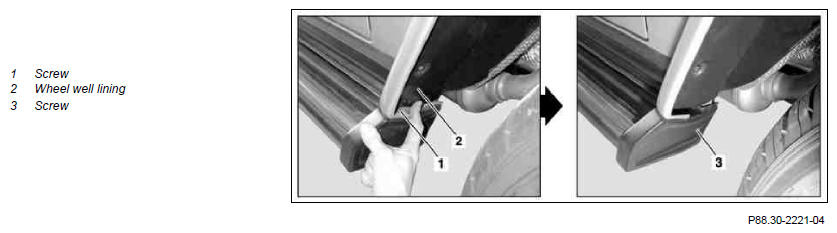

Fig 1: Side Step Remove/Install Components - Shown On Right Front Vehicle

Courtesy of MERCEDES-BENZ USA

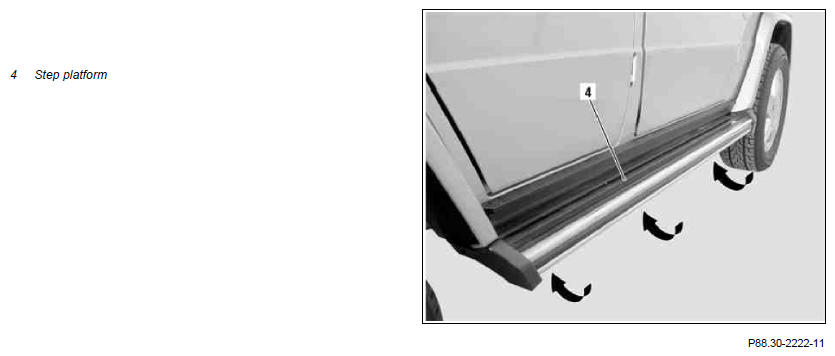

Fig 2: Side Step Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Press in wheel well panel (2) and unscrew bolt (1) from fender flare
2	Remove screw/bolt (3)
3	Remove running board (4) from bracket	The running board is fastened at three brackets with 2 nuts each (arrows).
4	Remove running board (4).
5	Install in the reverse order
