Remove/install charge air cooler - AR09.41-P-6817MUD
MODEL 463 with ENGINE 279
| Risk of injury to skin and eyes suffering scalding from contact with hot coolant spray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Remove/install | |||
| 1 | Drain coolant of the low-temperature circuit | AR09.41-P-6834MNZ | |
| 2 | Remove air filter housing on the left or right | Model 463 with engine 279 with code 494 (US version) |
AR09.10-P-1150MUC |
| Model 463 with engine 279 except code 494 (US version) |
AR09.10-P-1150MUB | ||

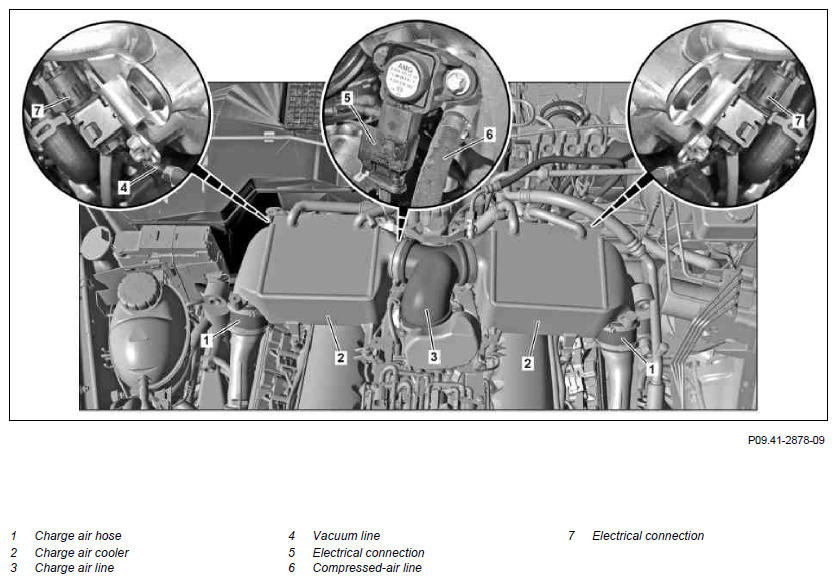

| 3 | Detach charge air hose (1) on the left or the right at charge air cooler (2) | ||
| 4 | Check charge air hose (1) and hose clamps for damage | If damage is present ↓ Replace corresponding assembly part. |
|
| 5 | Clean and degrease inside of charge air hose (1) as well as its connection fitting on charge air cooler (2) | Assembly cleaner | *BR00.45-Z-1028-04A |
| 6 | Detach charge air line (3) on charge air cooler (2) of left or right | ||
| 7 | Check charge air line (3) and hose clamps for damage | If damage is present ↓ Replace corresponding assembly part. |
|
| 8 | Clean and degrease charge air line (3) inside as well the connection fitting on charge air cooler (2) | Assembly cleaner | *BR00.45-Z-1028-04A |

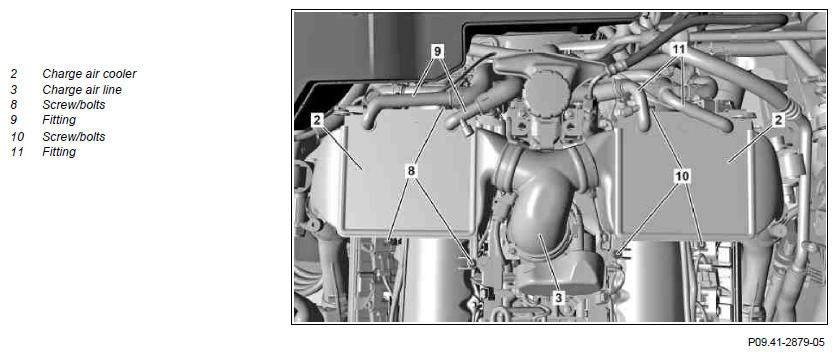

| 9 | Disconnect coolant hoses at the supports (9a) of the right charge air cooler (2) | Only for removal of the right charge air cooler (2). | |
| 10 | Check coolant hoses on the fittings (9) and check hose clamps for damage | Only for removal of the right charge air cooler (2). If damage is present ↓ Replace corresponding assembly part. |
|
| 11 | Detach coolant hoses at the supports (11a) of the left charge air cooler (2) | Only for removal of the left charge air cooler (2). | |
| 12 | Check coolant hoses on the fittings (11) and check hose clamps for damage | Only for removal of the left charge air cooler (2). If damage is present ↓ Replace corresponding assembly part. |
|
| 13 | Remove vacuum line (4) from charge air cooler (2) | Only for removal of the right charge air cooler (2). |
|
| 14 | Disconnect electrical connection (5) | Only for removal of the right charge air cooler (2). | |
| 15 | Detach air line (6) on charge air cooler (2) | Only for removal of the right charge air cooler (2). | |
| 16 | Unclip electrical connection (7) onto charge air cooler (2) on left or right | ||
| 17 | Remove screws/bolts (8) | Only for removal of the right charge air cooler (2). | |
| *BA09.41-P-1001-01Q | |||
| 18 | Remove screw/bolts (10) | Only for removal of the left charge air cooler (2). | |
| *BA09.41-P-1001-01Q | |||
| 19 | Remove charge air cooler (2) on the left or right | ||
| 20 | Install in the reverse order |
CHARGE AIR PIPE/CHARGE AIR COOLING
| Number | Designation | Engine 279 | |
|---|---|---|---|
| BA09.41-P-1001-01Q | Screw/bolt, charge air cooler to cylinder head cover | Nm | 9 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1028-04A | Assembly cleaner | Adolf Wurth GmbH & Co. KG |
