Check brake disks for axial runout - AR42.10-P-0265GG
MODEL 460, 461
MODEL 463 up to model year 2013
| Remove/install | |||
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| 1 | Remove wheel | ||
| AP40.10-P-4050G | |||
| Check | |||
| 2 | Check condition of brake disk | ||
| AP42.10-P-4251G | |||
| 3 | Press brake pads | ||
| 4 | Check wheel bearing play and adjust if necessary | Except model 461.331, 463.270/271 | AR33.20-P-0300GG |
| Model 461.331, 463.270/271 | AR33.20-P-0300GX | ||

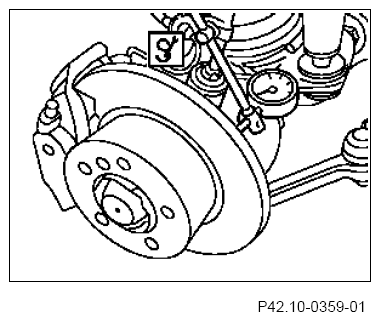

| 5 | Secure dial indicator with dial indicator holder to wheel carrier and align. | Fig 3 | |
| Fig 2 | |||
| 6 | Slowly turn brake disk by hand and read off axial runout at dial indicator. | Permissible axial runout of brake disk | *BE42.10-P-1002-08C |
| Permissible axial runout of brake disk | *BE42.10-P-1002-09C | ||
| 7 | Install in the reverse order | ||
| Risk of accident when commissioning the vehicle due to a lack of braking effect when the service brake is operated for the first time after repair work. | Before starting engine, actuate brake pedal several times until pressure is built up and maintained in the brake system. | AS42.50-Z-0002-01A | |
| 8 | Push down brake pedal several times |
CHECK VALUES FOR REAR AXLE BRAKE DISKS
| Number | Designation | MODEL 461, 463 (except 463.270/271) | MODEL 463.270/271 | |
|---|---|---|---|---|
| BE42.10-P-1002-09C | Permissible axial runout of brake disc | mm | 0, 1 | 0, 1 |
CHECK VALUES FOR FRONT AXLE BRAKE DISKS
| Number | Designation | MODEL 460, 461, 463 without internally vented brake disks | MODEL 461 with internally vented brake disks | |
|---|---|---|---|---|
| BE42.10-P-1002-08C | Permissible axial runout of brake disc | mm | 0, 1 | 0, 15 |
CHECK VALUES FOR FRONT AXLE BRAKE DISKS
| Number | Designation | MODEL 463 (except 463.270/271) with internally vented brake disks | Model 463.270/271 | |
|---|---|---|---|---|
| BE42.10-P-1002-08C | Permissible axial runout of brake disc | mm | 0, 15 | 0, 1 |
