Remove/install wheels, rotate if necessary - AP40.10-P-4050G
MODEL 460, 461, 463

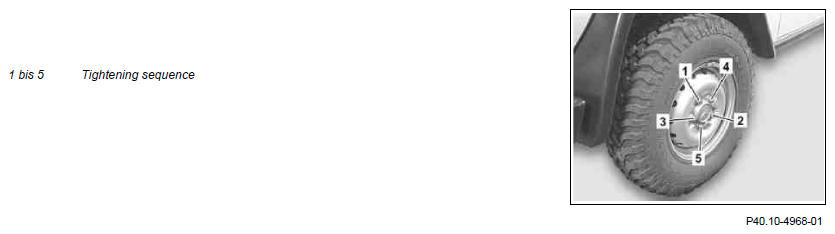

Left illustration
Right figure
| Remove | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Hoist vehicle with lifting platform until wheels are free | ||
| AR00.60-P-1000G | |||
| 2 | Unscrew wheel bolts or unscrew wheel nuts and remove wheel-and-tire assemblies using wheel lift | ||
| Check | |||
| 3 | Check tires for signs of damage and make sure that they are in good condition | AP40.10-P-4051GM | |
| Information on tires/rims | AH40.10-P-9411-01A | ||
| Install | |||
| 4 | Clean and check wheel bolt connection components, then protect against corrosion | AP40.10-P-4050-01A | |
Before mounting a wheel-and-tire assembly all the operation steps listed in the linked description must be conducted carefully. Otherwise the wheel-and-tire assembly may work its way loose from the vehicle and cause damage to people, property or the environment! |
|||
| Assembly cleaner | *BR00.45-Z-1028-04A | ||
| Paste, hot lubrication 1 kg, DBL 6879.20 | *BR00.45-Z-1005-06A | ||
| 5 | Change round wheel-and-tire assemblies on front and rear axles | If necessary, subject to separate repair order and only for vehicles without mixed tires. Maintain running direction of wheel-and-tire assemblies. Otherwise handling characteristics and handling comfort may be impaired and tire wear increased. |
|
| 6 | Attach complete wheels using wheel lift and tighten wheel bolts or wheel nuts | ||
| *BA40.10-P-1001-03A | |||
| *BA40.10-P-1002-03A | |||
| *BA40.10-P-1003-03A | |||
| *BA40.10-P-1004-03A | |||
| *BA40.10-P-1005-03A | |||
| 7 | Lower vehicle | ||
| 8 | Correct tire pressure of front and rear axle tires | AP40.15-P-4060G | |
| In the event of unusual tire pressure loss: ↓ Determine and rectify cause, subject to separate repair order. |
DISK WHEELS
| Number | Designation | Model 460, 461, 463 | |
|---|---|---|---|
| BA40.10-P-1001-03A | Wheel bolt for steel rim | Nm | 180 |
DISK WHEELS
| Number | Designation | Model 460, 461, 463 | |
|---|---|---|---|
| BA40.10-P-1002-03A | Wheel bolt for light alloy disk wheel | Nm | 130 |
DISK WHEELS
| Number | Designation | Model 460, 461, 463 | |
|---|---|---|---|
| BA40.10-P-1003-03A | Wheel nut for steel rim | Nm | 180 |
DISK WHEELS
| Number | Designation | Model 460, 461, 463 | |
|---|---|---|---|
| BA40.10-P-1004-03A | Wheel nut for light alloy disk wheel | Nm | 150 |
DISK WHEELS
| Number | Designation | Model 460, 461, 463 | |
|---|---|---|---|
| BA40.10-P-1005-03A | Wheel nut for light alloy disk wheel (two-piece) | Nm | 175 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1005-06A | Paste, hot lubrication 1 kg, DBL 6879.20 | A 000 989 76 51 |
| BR00.45-Z-1028-04A | Assembly cleaner | Adolf Wurth GmbH & Co. KG |
