Remove/install brake disc - AR42.10-P-0220GW

MODEL 463 as of model year 2013/model refinement package 2012

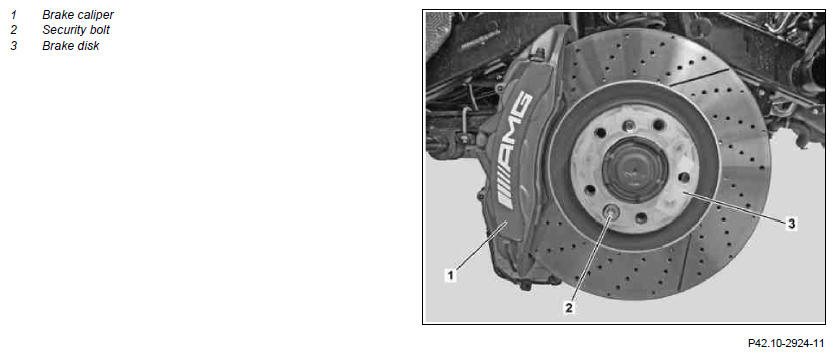

Fig 1: Brake Disc Remove/Install Components

G10780764

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of injury to skin and eyes caused by handling hot or glowing objects.	Wear safety gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Notes on repairs to brake system		AH42.00-P-0003-01A
1	Remove brake caliper (1)		AR42.10-P-0070GW
2	Remove locking bolt (2) and remove brake disk (3)	Always replace the brake disks (3) in pairs. Lightly grease seat of brake disk (3) and replace the safety bolt (2).
			*BA42.10-P-1001-06B
		Hot lubricating paste	*BR00.45-Z-1005-06A
3	Install in the reverse order
	Checking
4	Check fluid level in brake fluid reservoir, and correct if necessary.
5	Check function and effectiveness of brake system

BRAKE DISCS, BRAKE COVER PLATE

Number	Designation		MODEL 463
BA42.10-P-1001-06B	Locking bolt, brake disk to wheel hub	Nm	25

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1005-06A	Paste, hot lubrication 1 kg, DB supply specification 6879.20	A 000 989 76 51
