Overview of system components of ADAPTIVE BRAKE - GF42.47-P-9996GW
MODEL 463 as of model year 2013

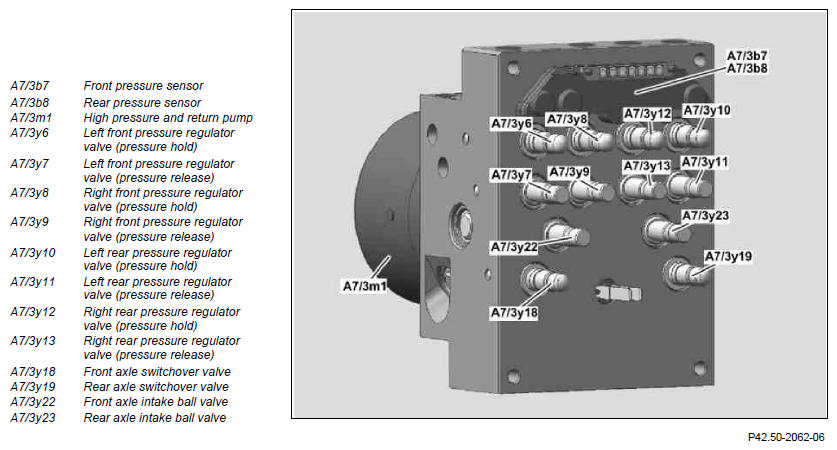

Illustration shows traction system hydraulic unit (with code EZ9 (DISTRONIC PLUS))

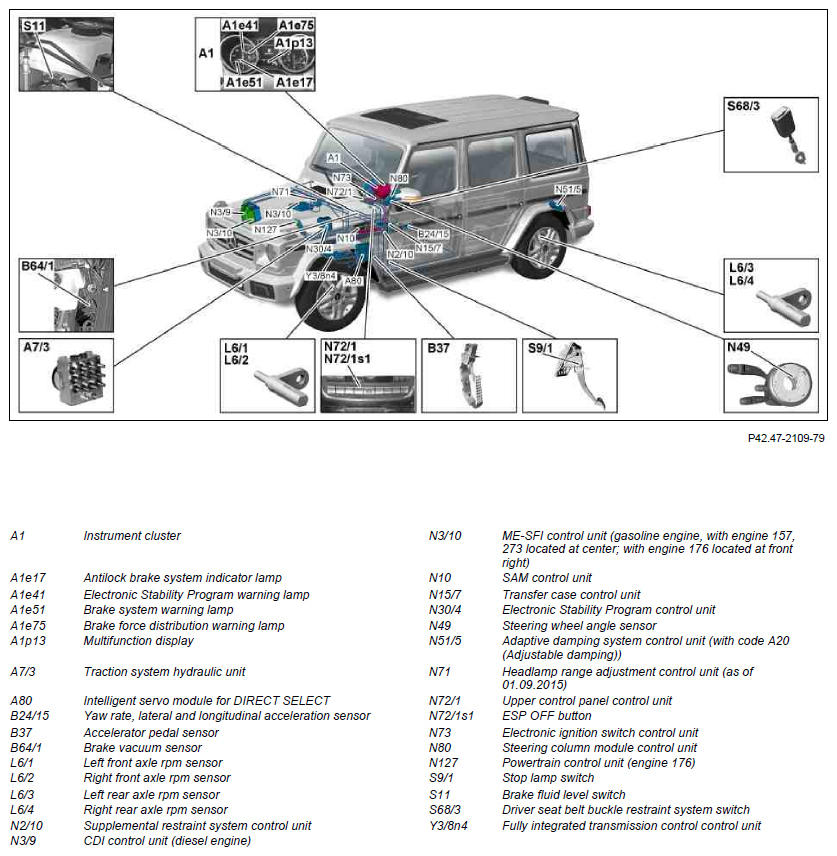

Fig 2: Overview Of Adaptive Brake System Components - Shown On Traction System Hydraulic Unit (With Code EZ9)
Model 463
as of model year 2013
except code EZ9 (DISTRONIC PLUS)
The front axle brake pressure sensor (A7/3b1) is not shown here.
| Component description for instrument cluster | A1 | GF54.30-P-6000GW | |
| Component description for intelligent servo module for DIRECT SELECT | Model 463 with transmission 722.9 as of model year 2013 A80 |
GF27.19-P-4020AHG | |
| Component description for yaw rate sensor for lateral and longitudinal acceleration | B24/15 | GF42.45-P-4810GW | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080GW | |
| Component description for CDI control unit | Model 463 with engine 642.8 as of model year 2013 N3/9 |
GF07.16-P-6000OGT | |
| Component description for ME-SFI (ME) control unit | Model 463 with engine 157.9 as of model year 2013 N3/10 |
GF07.61-P-6000MMJ | |
| Model 463 with engine 176.9 as of model year 2016 N3/10 |
GF07.61-P-6000MNF | ||
| Model 463 with engine 273.9 as of model year 2013 N3/10 |
GF07.61-P-6000MLJ | ||
| SAM control unit, component description | N10 | GF54.21-P-4157GW | |
| Component description of transfer case control unit | Model 463 with transmission 722.9 as of model year 2013 N15/7 |
GF28.19-P-3200VGE | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119GW | |
| Component description for adaptive damping system control unit | Model 463 as of model year 2016 with code A20 (Adjustable damping) N51/5 |
GF32.32-P-1010GW | |
| Component description of headlamp range adjustment control unit | Model 463 as of model year 2016 N71 |
GF82.10-P-2112GW | |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040GW | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001GW | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051GW | |
| Drivetrain control unit, component description | Model 463 with engine 176.9 as of model year 2016 N127 |
GF54.21-P-2141MNF | |
| Component description for fully integrated transmission control unit | Model 463 with transmission 722.9 as of model year 2013 Y38n4 |
GF27.60-P-5165AHG | |
| Table of contents for function description of ADAPTIVE BRAKE | GF42.47-P-0998GW |
