Remove/install tilting/sliding roof motor - AR77.20-P-3010GW

MODEL 463 (except 463.202) as of model year 2013/model refinement package 2012

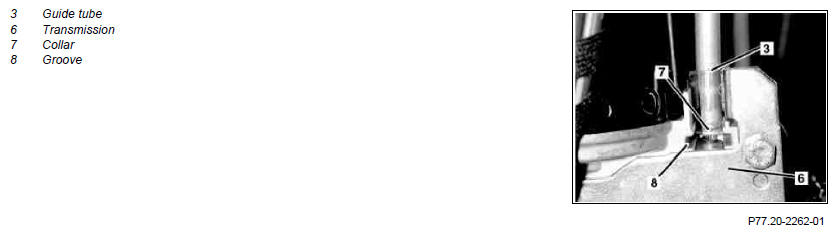

Fig 1: Tilting/Sliding Roof Motor Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

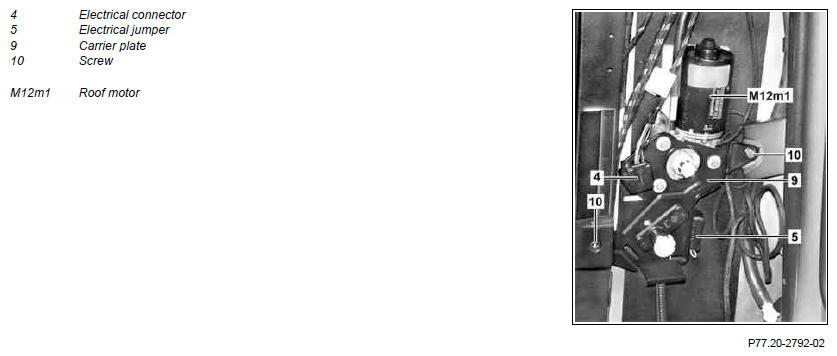

Fig 2: Tilting/Sliding Roof Motor Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove paneling from tilting/sliding roof		AR77.20-P-0500GW
2	Remove tilting/sliding roof control cable		AR77.20-P-1400GW
3	Remove left side wall lining		AR68.30-P-1450GW
4	Disconnect electrical connector (4)
5	Remove bolts (10)
6	Remove roof system motor (M12m1) with carrier plate (9)	If the roof system motor (M12m1) is replaced, transfer electrical jumper (5).
7	Remove guide tube (3) from gear (6)	When installing, ensure that the collar (7) on the guide tube (3) slides into the groove (8) on the gear (6).
8	Install in the reverse order
9	Perform basic programming		AR00.19-P-0200GW
10	Read out and erase the fault memory using Star Diagnosis		AD00.00-P-2000-04A
11	Perform function test
