Remove/install paneling on tilting/sliding roof - AR77.20-P-0500GW

MODEL 463 (except 463.202) as of model year 2013/model refinement package 2012

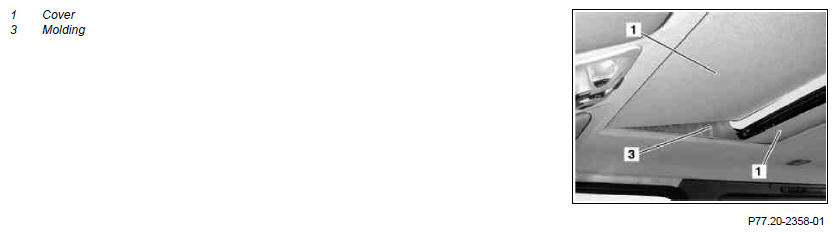

Fig 1: Tilting/Sliding Roof Paneling Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

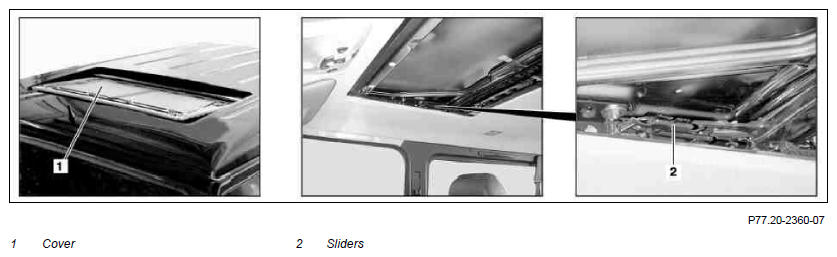

Fig 2: Tilting/Sliding Roof Paneling Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Removing
1	Open tilting/sliding roof
2	Pry paneling (1) off of tilting/sliding roof		Fig 3
3	Pull paneling (1) out of vehicle toward front
	Install
4	Position sliders (2) horizontally at tilting brackets
5	Insert paneling (1) into roof cutout
6	Slide guide sleeve at rear part of paneling (1) onto guide pins on roof cutout
7	Slide paneling (1) toward rear to stop	Carefully slide paneling (1). The side moldings (3) can stick in the sliders (2) and be damaged.
8	Clip paneling (1) into titling/sliding roof	Replace damaged clip bottom sections.
9	Position tilting/sliding roof half way to pop-up position	Carefully move tilting/sliding roof to pop-up position. The side moldings (3) can stick and moldings (3) can be damaged during the tilting procedure. It should be possible to retract or extend the side moldings (3) without resistance.
	Checking
10	Check tilting/sliding roof for proper function

Fig 3: Identifying Mounting Wedge (110 589 03 59 00)
