Remove/install passenger-side interior fuse box - AR54.15-P-1311GW
MODEL 463 as of model year 2013/facelift 2012
| Remove/install | |||
| 1 | Detach ground line from battery | AR54.10-P-0003GW | |
| Notes on battery | AH54.10-P-0001-01A | ||

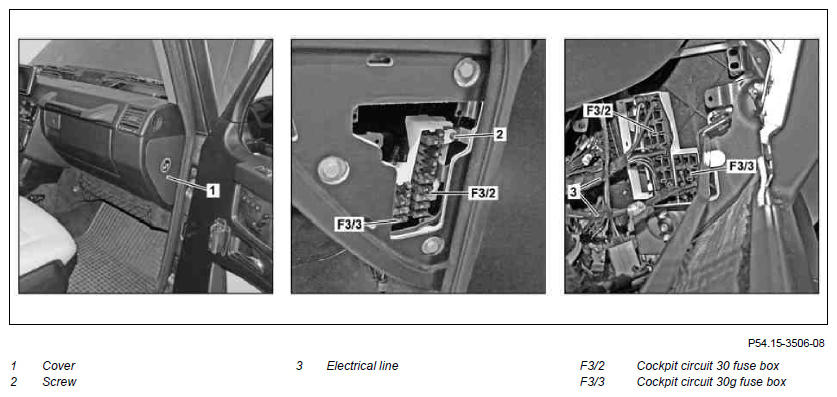

| 2 | Unclip cover (1) | ||
| 3 | Remove bolt (2) | ||
| 4 | Carefully pull cockpit fuse box, terminal 30 (F3/2) or cockpit fuse box, terminal 30g (F3/3) forward | ||
| 5 | Detach electrical lines (3) from cockpit fuse box, terminal 30 (F3/2) or cockpit fuse box, terminal 30g (F3/3) | ||
| Fig 2 | |||
| 6 | Install in the reverse order |
