Remove/install interior compartment prefuse box - AR54.15-P-1350GW
MODEL 463 as of model year 2013/facelift 2012
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||

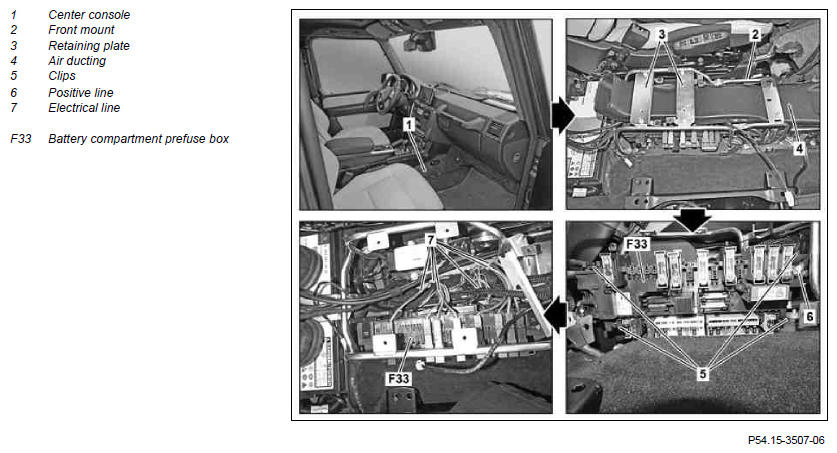

| 1 | Remove right front seat | Station Wagon | AR91.10-P-1000GW |
| Cabrio | AR91.10-P-1000GWC | ||
| 2 | Remove center console (1) | AR68.20-P-2000GW | |
| 3 | Remove front bracket (2) and retaining plates (3) | ||
| 4 | Pull air ducting (4) to rear and remove | ||
| 5 | Detach positive line (6) from battery compartment prefuse box (F33) | ||
| 6 | Unclip prefuse box in battery compartment (F33) from bracket and remove | ||
| 7 | Disconnect electrical lines (7) from battery compartment prefuse box (F33) | ||
| 8 | Remove battery compartment prefuse box (F33) | ||
| 9 | Install in the reverse order |
