Remove/install fuse and relay box - AR54.15-P-1255GW

MODEL 463 as of model year 2013/facelift 2012

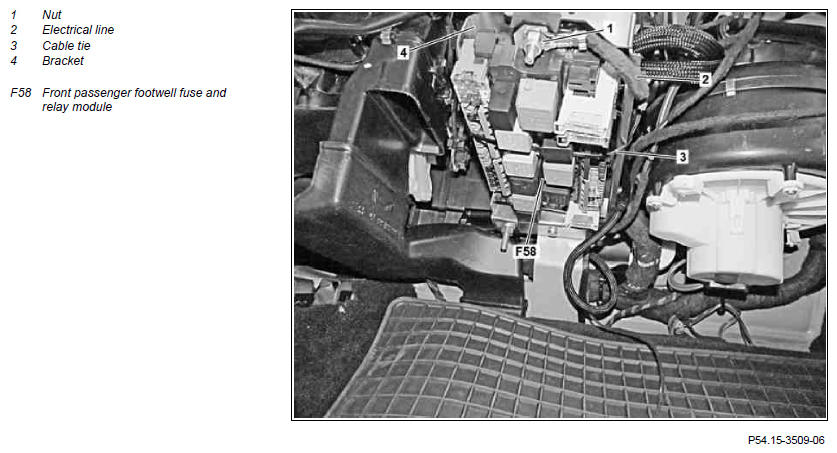

Fig 1: Fuse And Relay Box Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Detach ground line from battery		AR54.10-P-0003GW
	Notes on battery		AH54.10-P-0001-01A
2	Remove glove box		AR68.10-P-1400GW
3	Remove cover below right dashboard		AR68.10-P-1520GW
4	Unscrew nuts (1) and remove electrical line (2)
5	Cut cable tie (3) and unclip fuse and relay module on front passenger side footwell (F58) from bracket (4)	Replace cable tie (3).
6	Detach electrical lines from front passenger side footwell fuse and relay module (F58)	Ensure that electrical lines are routed correctly.
7	Read out and erase the fault memory using Star Diagnosis		AD00.00-P-2000-04A
8	Install in the reverse order
