Remove/Install Cover On Front Backrest - AR91.18-P-1822XG
Model 463
as of model year 2019
Shown on front passenger seat
| Remove | |||
| 1 | Remove driver's seat or front passenger seat. | AR91.10-P-1000XG | |
| 2 | Remove seat backrest trim. | AR91.10-P-1912XG | |
| 3 | Remove head restraint guides. | AR91.16-P-0051XG | |

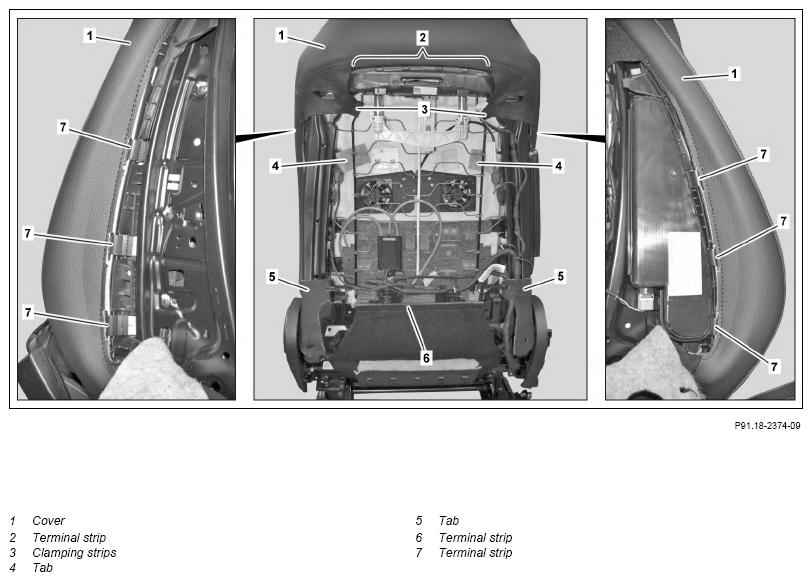

| 4 | Unhook terminal strips (3). | 3 |
Fig 4 |
| 5 | Unhook terminal strip (2). | Fig 2 | |
| 6 | Unhook terminal strip (6). | Fig 4 | |
| 7 | Unhook terminal strips (7). | Fig 4 | |
| 8 | Unhook shackles (4) of cover (1). | ||
| 9 | Unhook shackles (5) of cover (1). | ||
| 10 | Disconnect electrical connector of backrest seat ventilation motors and expose electric line. | Model 463 as of model year 2019 with code PA9 (Active Multicontour Seat package) |
|
| 11 | Disconnect electrical connector of seat heater and expose electric line. | Model 463 as of model year 2019 with code PA9 (Active Multicontour Seat package) |
|
| 12 | Slip over cover (1) in lower area forwards, as shown. | ||

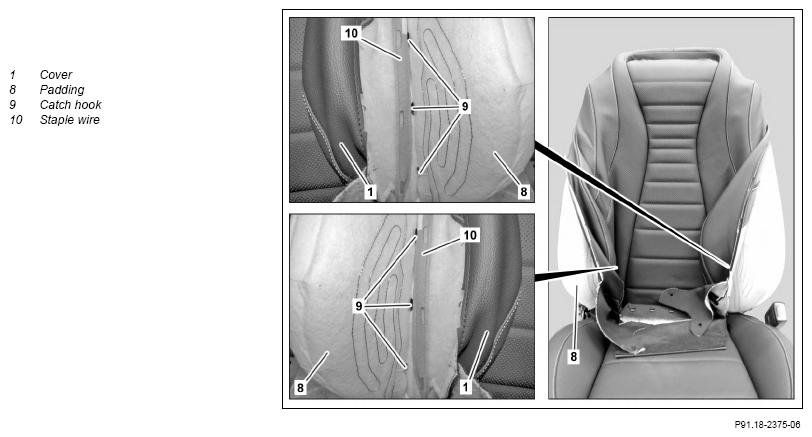

| 13 | Unclip staple wires (10) from catch hooks (9). | Fig 3 | |

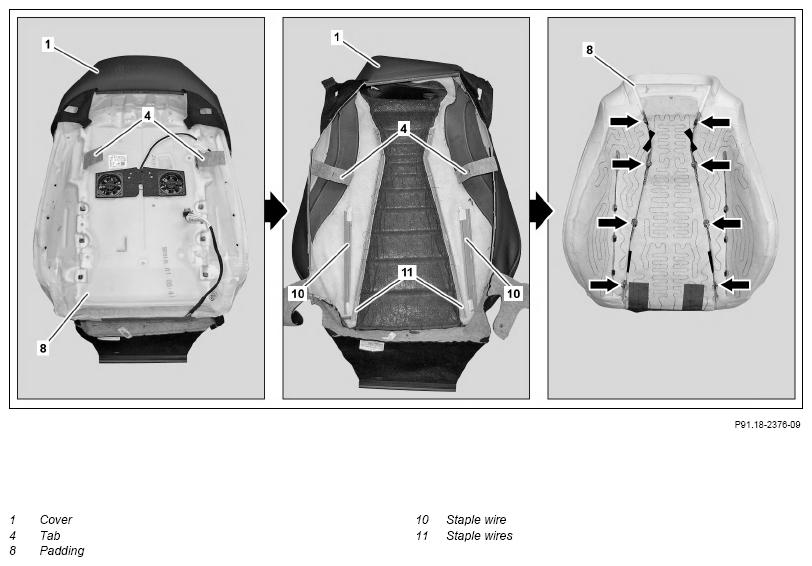

| 14 | Remove padding (8) together with cover (1) from backrest frame. | ||
| 15 | Slip cover (1) over the padding (8). | ||
| 16 | Unclip staple wires (11) from catch hooks (arrows) of padding (8). | Fig 3 | |
| 17 | Feed shackles (4) through the padding (8). | ||
| 18 | Remove cover (1) from padding (8). | ||
| Install | |||
| 19 | Align cover (1) in center above padding (8). | ||
as of model year 2019 with code PA9 (Active Multicontour Seat package) The seat heater mat is bonded to the padding (8). When replacing the padding (8) or the seat heater mat, replace both parts together. |
|||
| 20 | Clip staple wires (11) into catch hooks (arrows) of padding (8). | Fig 3 | |
| 21 | Feed shackles (4) through the padding (8). | ||
| 22 | Check alignment of cover (1) based on markings on upper end of cover (1) and padding (8). | ||
| 23 | Slip cover (1) over the padding (8). | ||
| 24 | Align padding (8) together with cover (1) on backrest frame. | ||
| 25 | Clip staple wires (10) into catch hooks (9). | Fig 3 | |
| 26 | Slip over cover (1) in lower area backwards. | ||
| 27 | Route electric line of seat heating, fix it in place and connect its electrical connector. | Model 463 as of model year 2019 with code PA9 (Active Multicontour Seat package) |
|
| 28 | Route electric line of seat ventilation motors for seat backrest, fix it in place and connect its electrical connector. | Model 463 as of model year 2019 with code PA9 (Active Multicontour Seat package) |
|
| 29 | Hook in shackles (5) of cover (1). | ||
| 30 | Hook in shackles (4) of cover (1). | ||
| 31 | Hook in terminal strips (7). | Fig 4 | |
| 32 | Clip in terminal strip (6). | Fig 4 | |
| 33 | Hook in terminal strip (2). | ||
| 34 | Hook in terminal strips (3). | Fig 4 | |
| 35 | Install head restraint guides. | AR91.16-P-0051XG | |
| 36 | Install seat backrest trim. | AR91.10-P-1912XG | |
| 37 | Install driver's seat or front passenger seat. | AR91.10-P-1000XG |
