Remove/Install Fuse And Relay Box - AR54.15-P-1255GW
Model 463
as of Model year 2013 up to Model year 2019

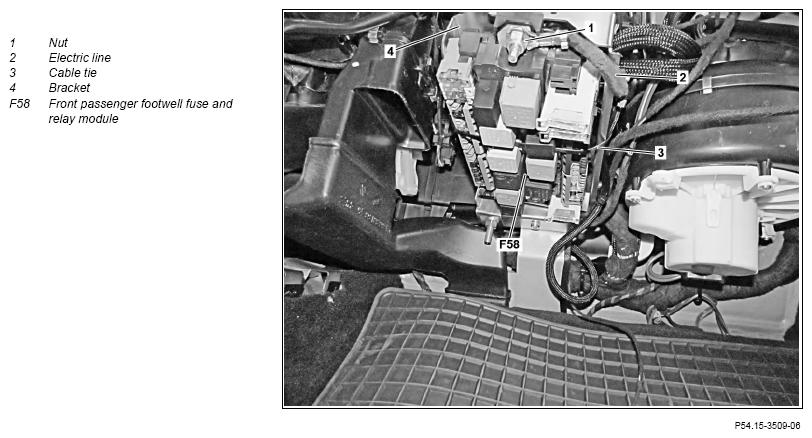

Fig 1: Fuse And Relay Module Components Location - Model 463 As Of Model Year 2013 Up To Model Year 2019
| Remove/install | |||
| 1 | Detach ground line from battery | Model 463 (except 463.234/236/241/242/248) as of Model year 2013 up to Model year 2019 | AR54.10-P-0003GW |
| Notes on battery | AH54.10-P-0001-01A | ||
| 2 | Remove glove box | AR68.10-P-1400GW | |
| 3 | Remove cover below right dashboard | AR68.10-P-1520GW | |
| 4 | Unscrew nut (1) and remove electrical line (2) | ||
| 5 | Cut cable tie (3) and unclip passenger-side footwell fuse and relay module (F58) from holder (4) | ||
| 6 | Disconnect electrical lines from passenger-side footwell fuse and relay module (F58) | ||
| 7 | Read out and erase the fault memory using Star Diagnosis | ||
| AD00.00-P-2000-04A | |||
| 8 | Install in the reverse order |
