Remove/Install Right Cover Below Instrument Panel - AR68.10-P-1520GW
Model 463
as of model year 2013 up to model year 2019
/facelift 2012

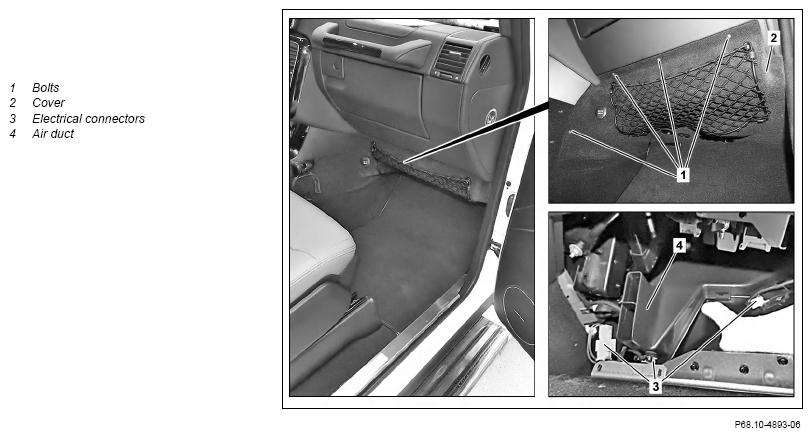

Shown on model 463 up to model year 2015

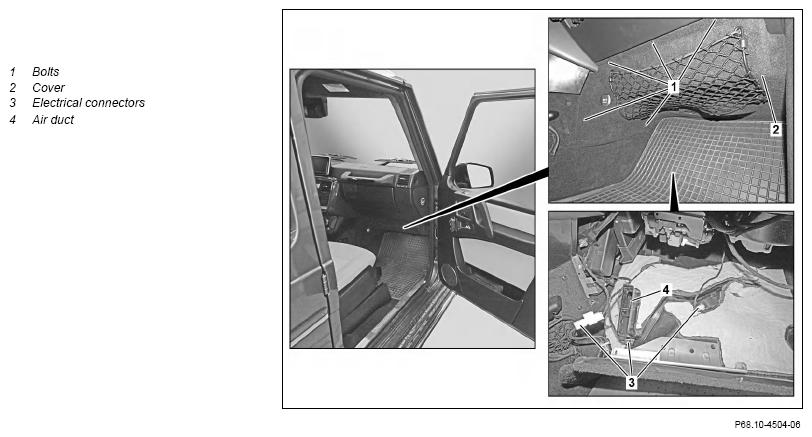

Shown on MODEL 463 as of model year 2016
Fig 1: Right Cover Below Instrument Panel Components Location - Model 463 As Of Model Year 2013 Up To Model Year 2019 /Facelift 2012 (Shown On Model After 2016)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 2 | Remove screw/bolts (1) | ||
| 3 | Slightly press cover (2) down | ||
| 4 | Remove air duct (4) from air duct segment | ||
| 5 | Disconnect electrical connectors (3) from right front footwell lamp (E17/15), right footwell vent air outlet temperature sensor (B10/36) and vehicle interior socket (X58/1) | ||
| 6 | Remove cover (2) | ||
| 7 | Install in the reverse order |
